Screen for a free and restricted operating mode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2023
Grant Date -
N/A
app pub date -
Mar 24, 2021
filing date -
Nov 27, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

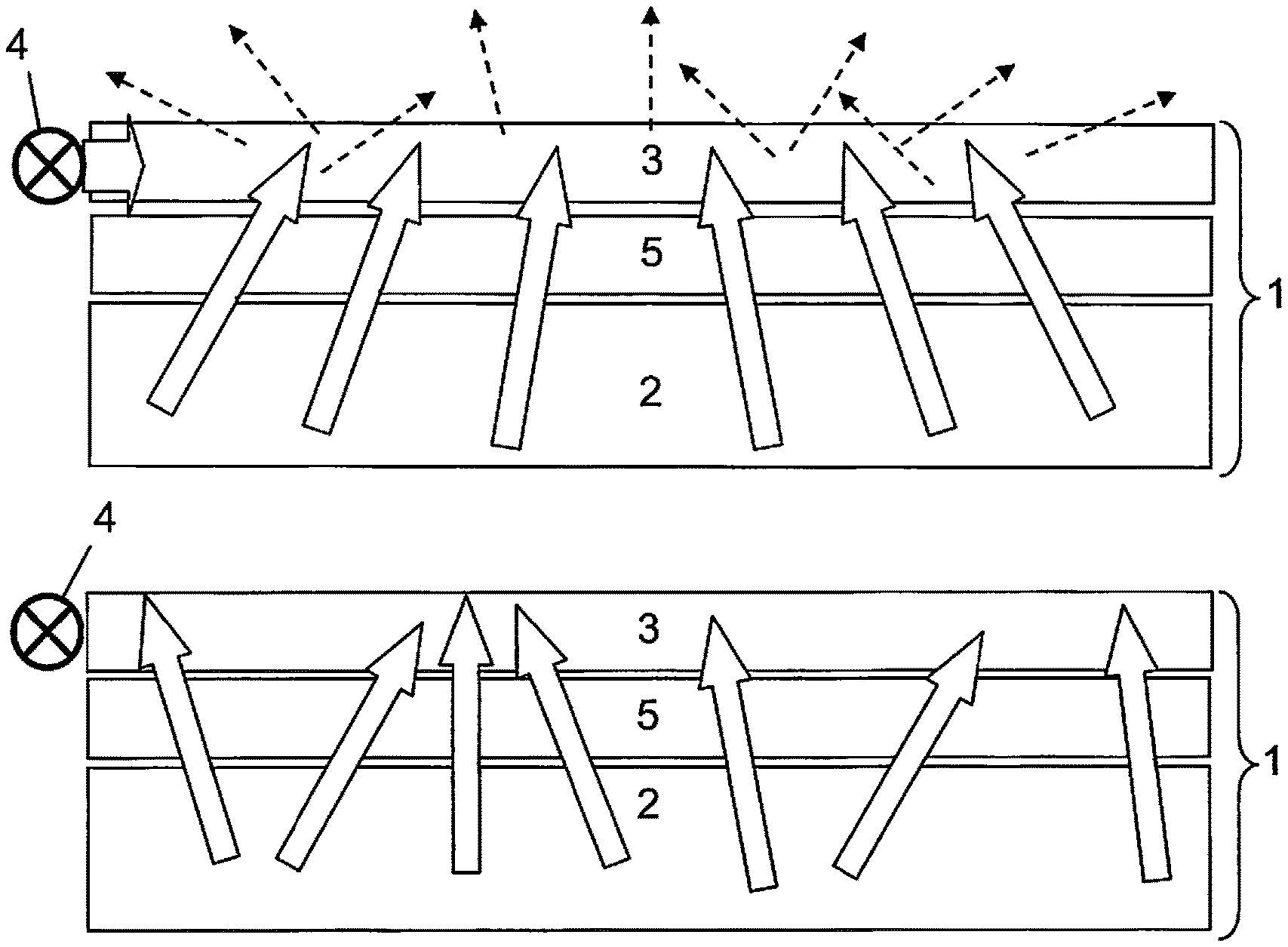

A screen having a free-viewing mode and a restricted-viewing mode, comprising a backlight emitting light into an unrestricted angular range in the free-viewing mode, and into a restricted angular range in the restricted-viewing mode. A transmissive imager is in front of the backlight. Light sources are outside the display area of the imager, and a transparent plate-shaped light guide scattering particles distributed therein is in front of the imager. In the free-viewing mode, the light sources are off, so that light from the backlight passing the imager passes the light guide unaffected. In the restricted-viewing mode, the lights are on, so that light radiating into a restricted angular range and passing the imager is superimposed by light that is scattered into the viewing space due to irradiation of light from the light guide. Thereby, the visibility of an image on the imager is reduced outside the restricted angular range.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
