Contact device and electromagnetic relay
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2022
Grant Date -
N/A
app pub date -
Jun 11, 2019
filing date -
Jun 11, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

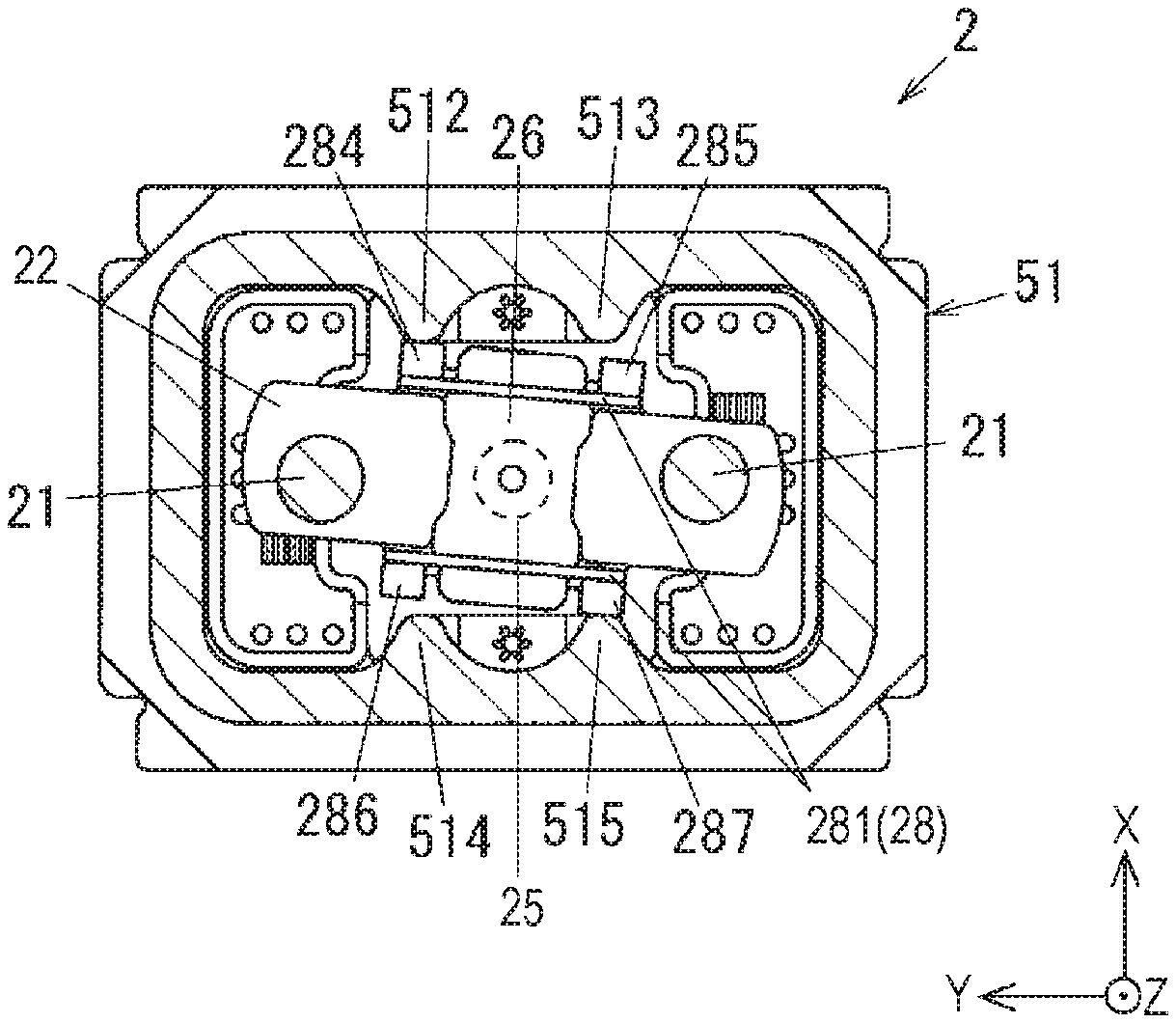

A contact device includes a pair of fixed contacts, a movable contactor, a contactor holder, a movable shaft, and a base. The pair of fixed contacts are aligned in a first direction. The movable contactor comes into or out of contact with the pair of fixed contacts in a second direction orthogonal to the first direction. The contactor holder holds the movable contactor. The movable shaft moves the contactor holder in the second direction so that the movable contactor comes into or out of contact with the fixed contacts. The base accommodates the fixed contacts, the movable contactor, and the contactor holder. The base has a projection projecting from a position opposing the contactor holder in a third direction orthogonal to both the first and second directions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01H Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 4, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 4, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2034 |
