Display panel and mobile terminal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2022
Grant Date -
N/A
app pub date -
Mar 16, 2020
filing date -
Mar 16, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

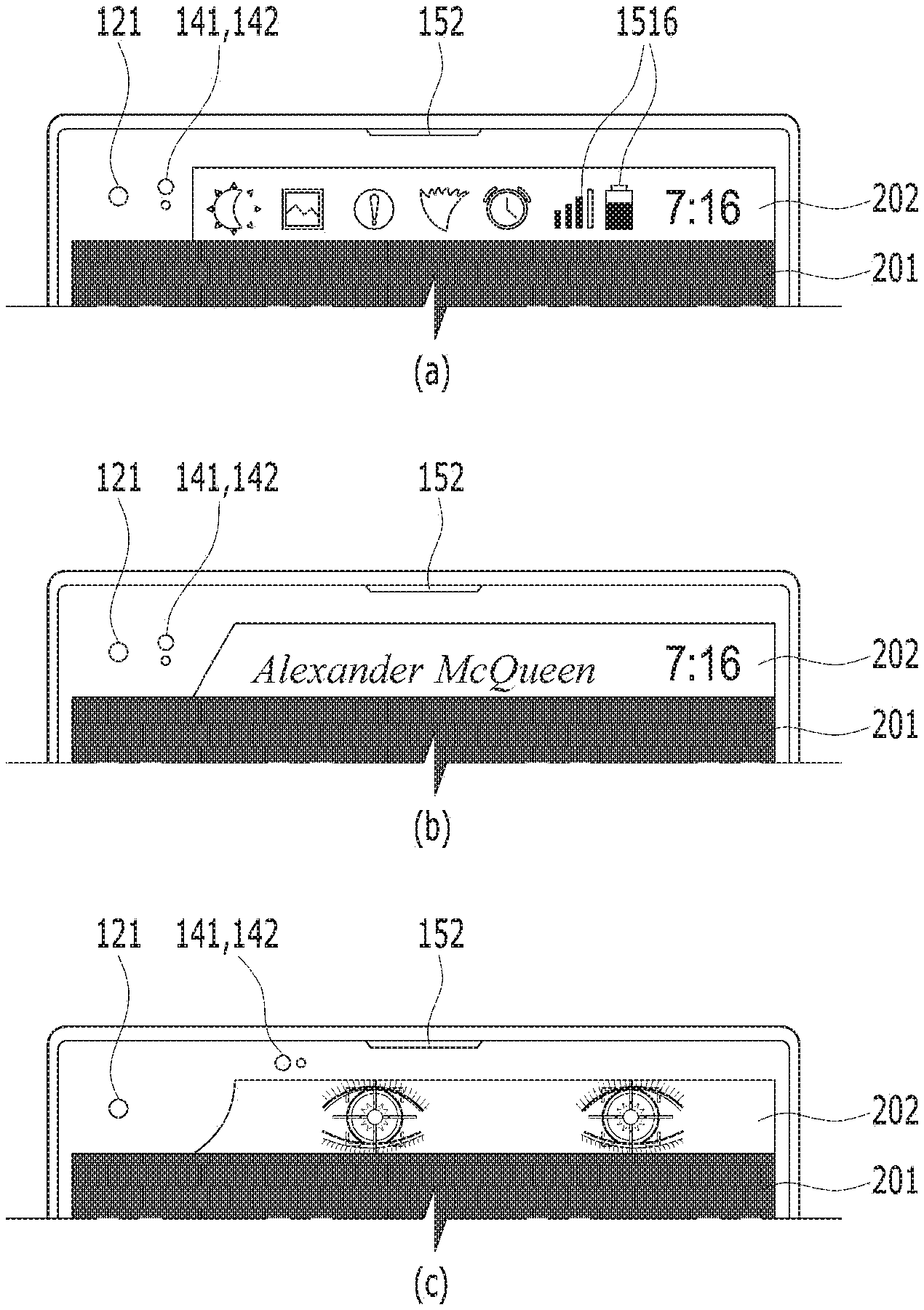

A display panel comprising a light guide plate; a main light source configured to emit light from a first lateral surface of the light guide plate in a first direction; a sub-light source configured to emit light from a second lateral surface vertical to the first lateral surface of the light guide plate in a second direction perpendicular to the first direction; and a liquid crystal panel provided in a front surface of the light guide plate and configured to output image information.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 24, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 24, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2033 |
