Electromagnetic relay
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Mar 8, 2022
Grant Date -
N/A
app pub date -
Jun 21, 2019
filing date -
Jun 21, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

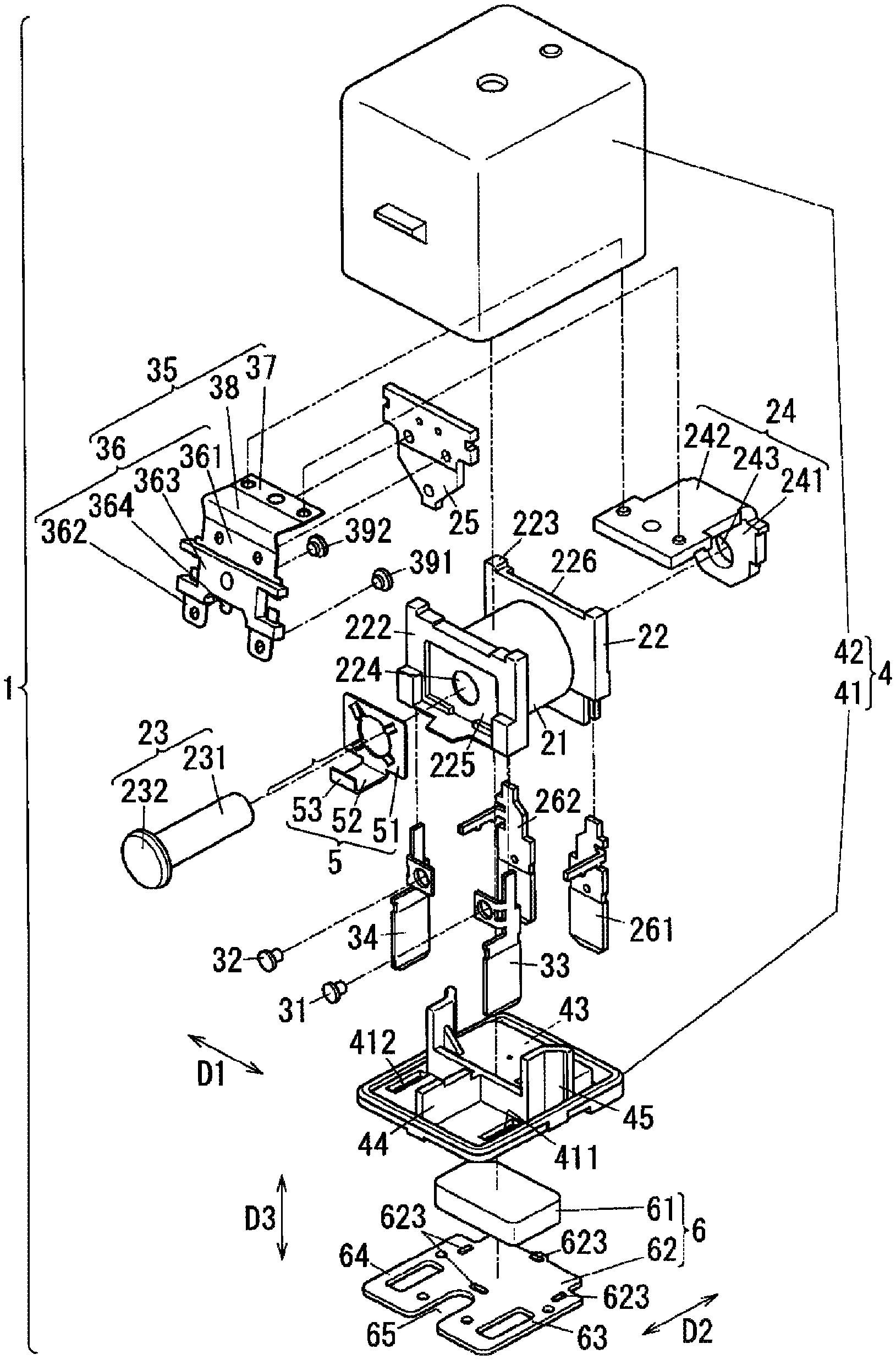

An electromagnetic relay includes an exciting coil, a pair of fixed contacts, a movable spring, a magnet, and a yoke in contact with the magnet. The pair of fixed contacts is arranged along a first direction. The movable spring comes into contact with or moves away from the fixed contacts in response to the turn on or off of current to the exciting coil. The magnet prolongs the arc generated between the fixed contacts and the movable spring. The magnet is adjacent to the fixed contacts along a second direction orthogonal to the first direction, and is adjacent to the exciting coil along a third direction orthogonal to the first direction and the second direction. The yoke is adjacent to the fixed contacts along the third direction in a state where the yoke is in contact with the magnet.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01H Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Sep 8, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 8, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2033 |
