Frame generating apparatus and frame generating method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2022
Grant Date -
N/A
app pub date -
Jan 17, 2018
filing date -
Jan 17, 2018
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

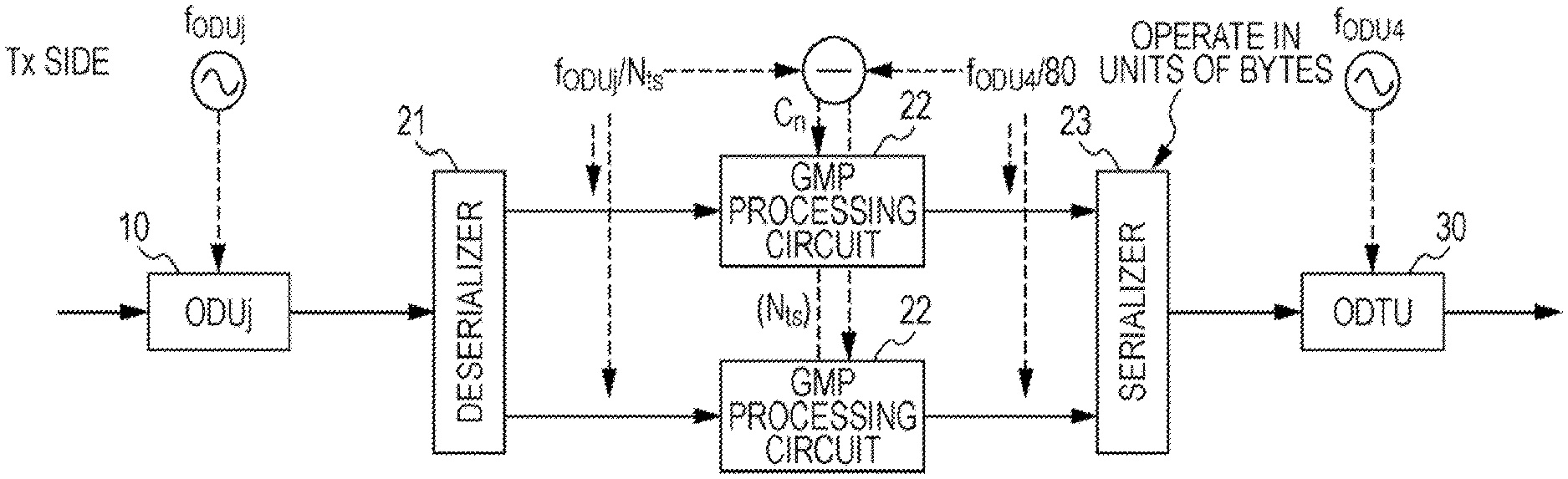

A frame generating apparatus accommodating a client signal in an optical data transfer unit frame with a higher bit rate than the client signal includes a deserializer, a plurality of generic mapping procedure circuits, and a serializer. The deserializer deserializes the client signal into parallel signals, the number of parallel signals corresponding to the number of tributary slots used in the optical data transfer unit frame. The plurality of generic mapping procedure circuits inserts data and stuff into a frame accommodating portion of the optical data transfer unit frame based on a difference in the bit rate between the client signal and the optical data transfer unit frame. The serializer serializes the parallel signals output from the plurality of generic mapping procedure circuits.
