Apparatus and method for imaging feet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2021
Grant Date -
N/A
app pub date -
Oct 2, 2019
filing date -
Aug 31, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

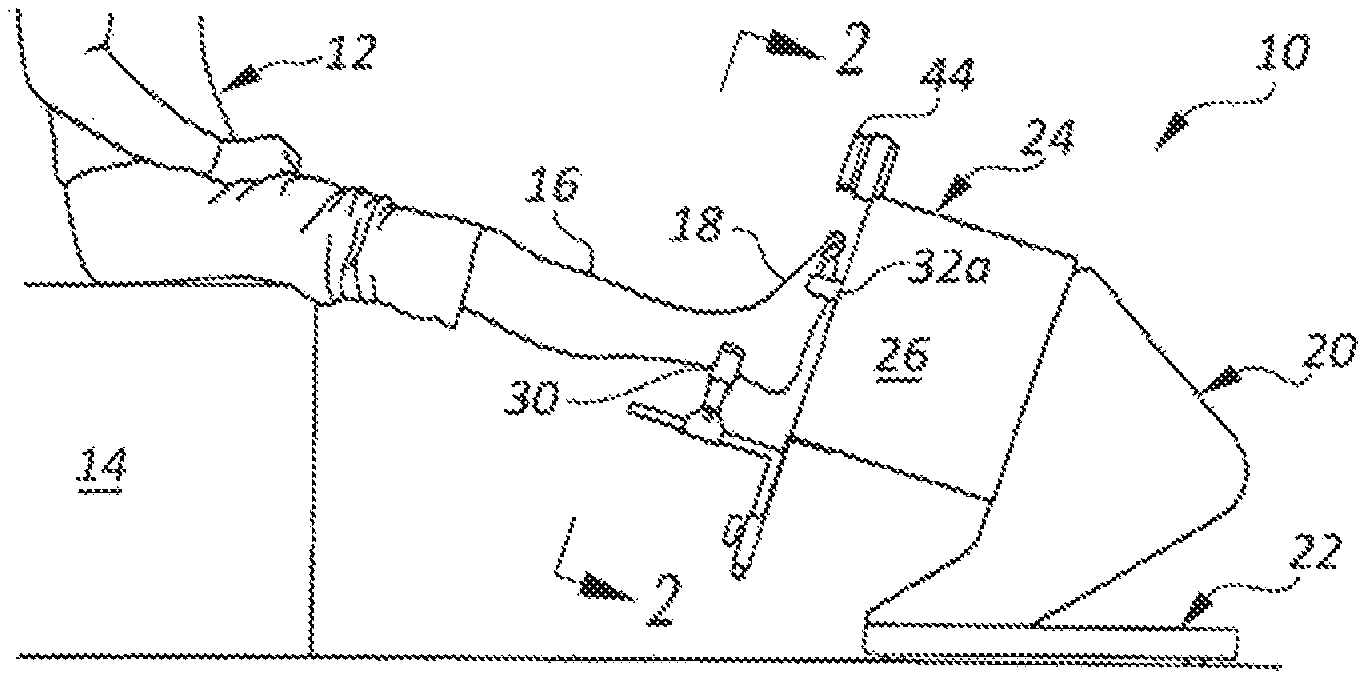

An apparatus and method for determining contours of a patient's foot ankle and lower leg. The apparatus includes an alignment structure that orientates the foot for imaging. The alignment structure includes at least one support member that engages the plantar surface of the foot substantially only in the immediate area of the lateral metatarsal heads of the foot, preferably the fifth metatarsal head. The support generates a dorsally-directed force that locks the midtarsal joint. The alignment structure further includes a saddle that engages the rearfoot and a laser beam for aligning the second metatarsal head with the distal one-third of the lower leg to place the subtalar joint in a neutral condition. The foot is thus suspended in space such that imaging is able to produce an accurate measurement of the subject areas of the foot, ankle and lower leg without distortion of the soft tissues or bone structure.
