System and method for monitoring the status of one or more components of an electrical machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 28, 2021
Grant Date -
N/A
app pub date -
Apr 24, 2019
filing date -
Mar 14, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

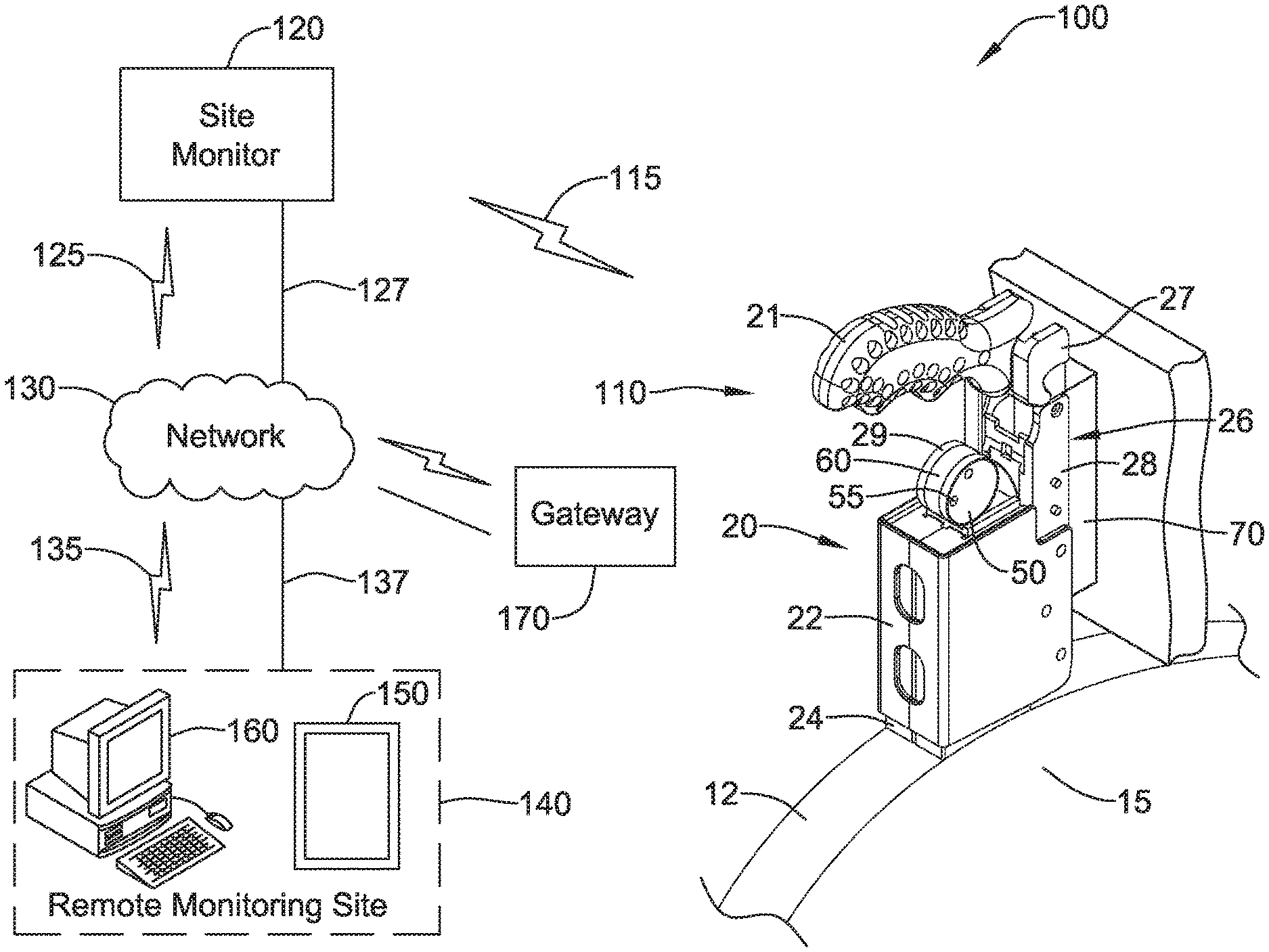

A monitoring apparatus configured for monitoring a carbon brush of a brush holder assembly of an electrical machine. The monitoring apparatus may include a flexible sensor and a signal processing circuit for processing a signal received from the flexible sensor. The flexible sensor may have an electrical resistance that varies based on a radius of curvature of the flexible sensor, wherein the radius of curvature of the flexible sensor may be associated with a deflection of a spring providing a force to engage the carbon brush with a rotating component of the electrical machine. The signal processing circuit may be coupled to the sensor and may be configured to determine a measure of a wear state of the carbon brush using information about the variable resistance of the flexible sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- H02K Class
- 3215 Applications Filed
- 2232 Patents Issued To-Date
- 69.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 28, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 28, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 28, 2033 |
