Enclosure for submersible network protectors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 2021
Grant Date -
N/A
app pub date -
Oct 22, 2018
filing date -
Oct 22, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

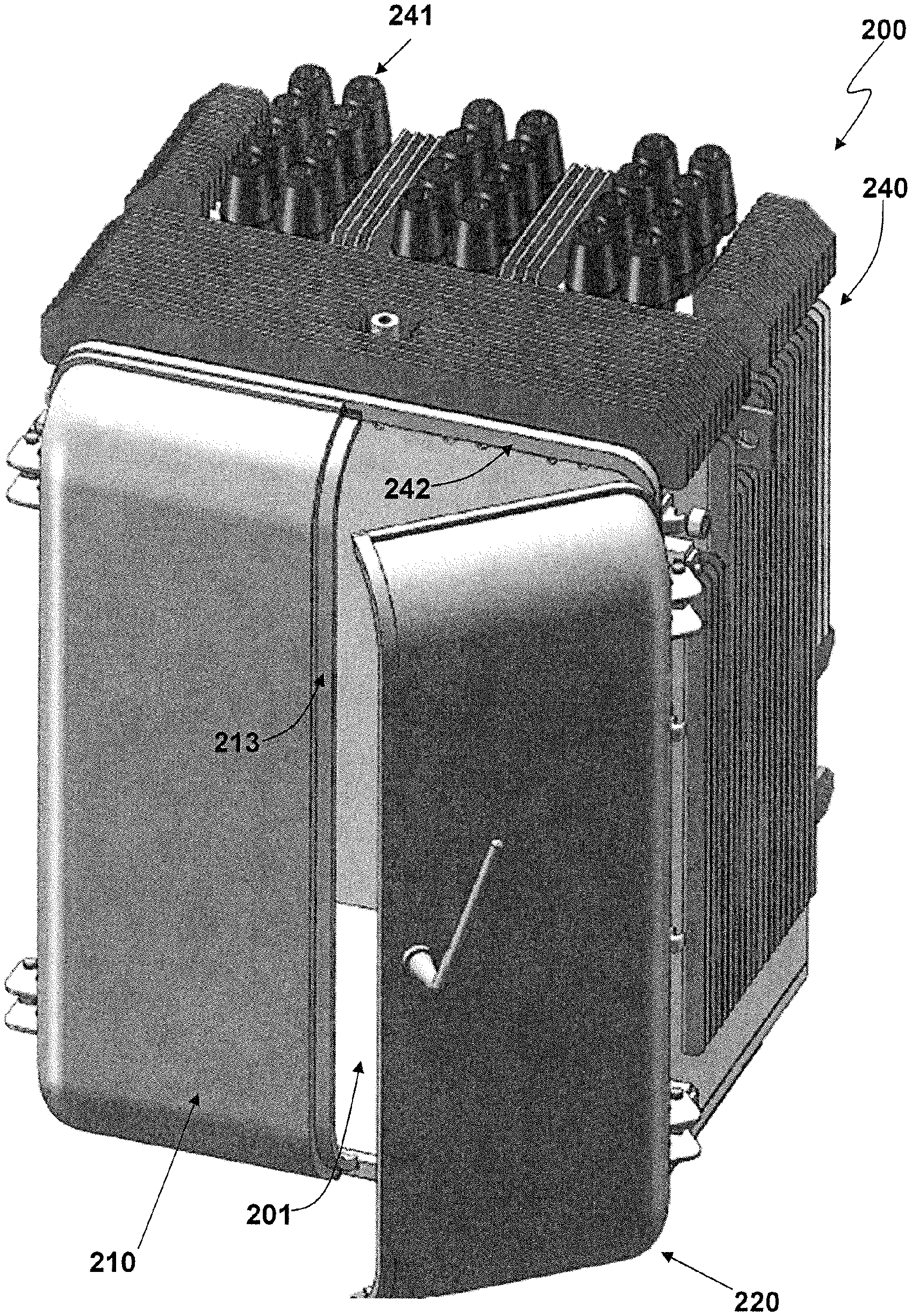

An enclosure for a network protector in an electrical distribution network includes a cabinet body that defines an interior region that accepts the network protector. The cabinet body three electrodes sealed with and electrically isolated from the cabinet body and each other, which extend through the cabinet body to establish electrical connection between corresponding terminals of the network protector and the electrical distribution network. First and second doors are pivotably connected to opposing sides of the cabinet body and have respective contact surfaces to seal against the cabinet body. A first gasket is disposed along a distal edge surface of the first door, and a second gasket is disposed along a distal edge surface of the second door. At least a portion of the first gasket and the second gasket have conformal shapes that sealingly mate with each other when the first and second doors are in a closed position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- H02B Class
- 294 Applications Filed
- 234 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 1, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 1, 2032 |
