Timing adjustments for small cell distributed antenna systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 30, 2021
Grant Date -
N/A
app pub date -
Feb 3, 2017
filing date -
Feb 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

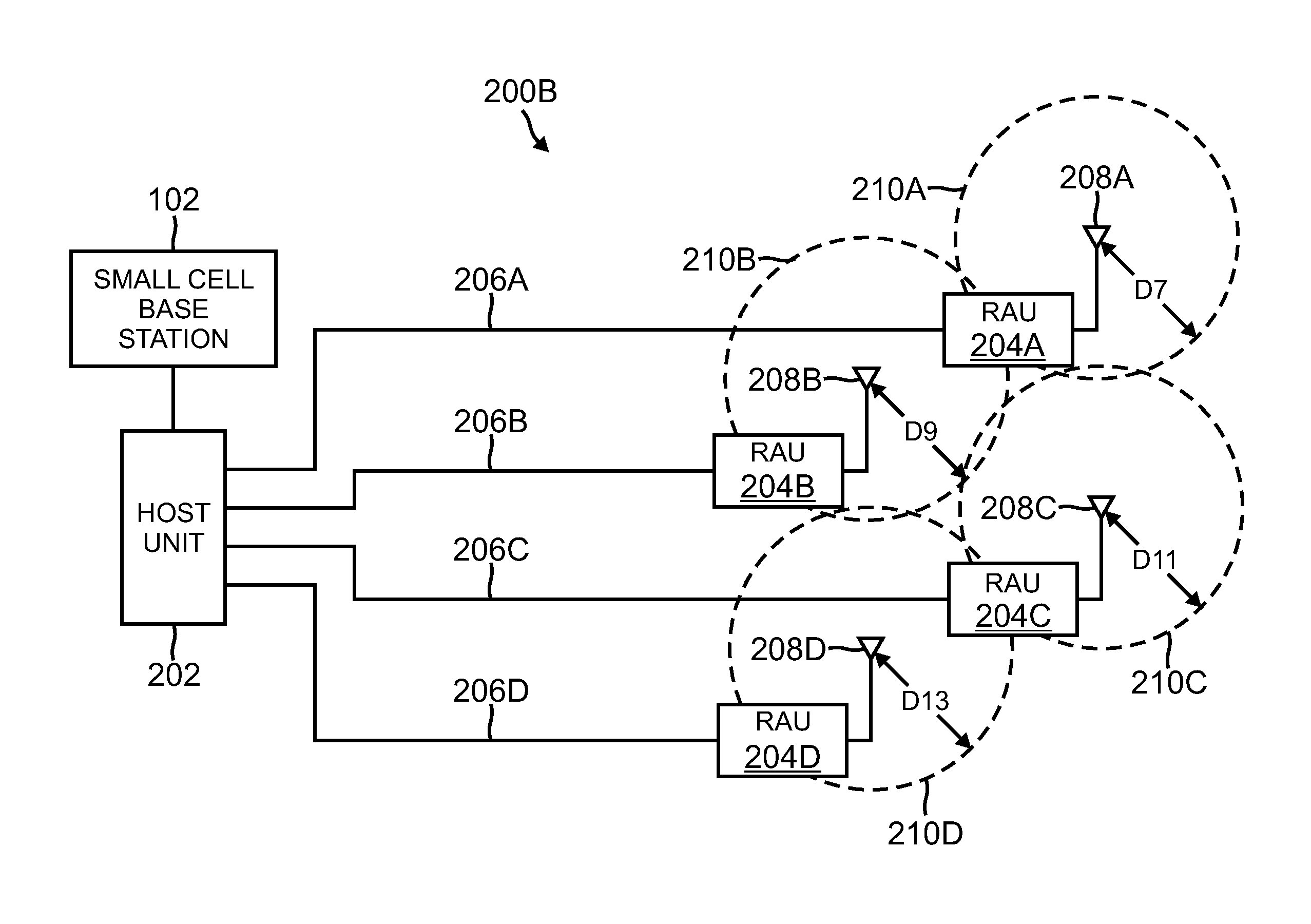

A distributed antenna system includes a host unit communicatively coupled to a first service provider interface which receives a first signal from the first service provider interface; and a first remote antenna unit communicatively coupled to the host unit, the first remote antenna unit having a first antenna. A base station to which the distributed antenna system is communicatively coupled is configured with a subscriber access timing window having a minimum allowed delay and a maximum allowed delay. The distributed antenna system is configured so that a first total delay between the host unit and the first remote antenna unit is equal to or greater than the minimum allowed delay. The first antenna of the first remote antenna unit is configured to communicate the first signal to a first subscriber unit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 30, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2032 |
