Distributed winding arrangement for an electric motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2021
Grant Date -
N/A
app pub date -
Aug 22, 2018
filing date -
Aug 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

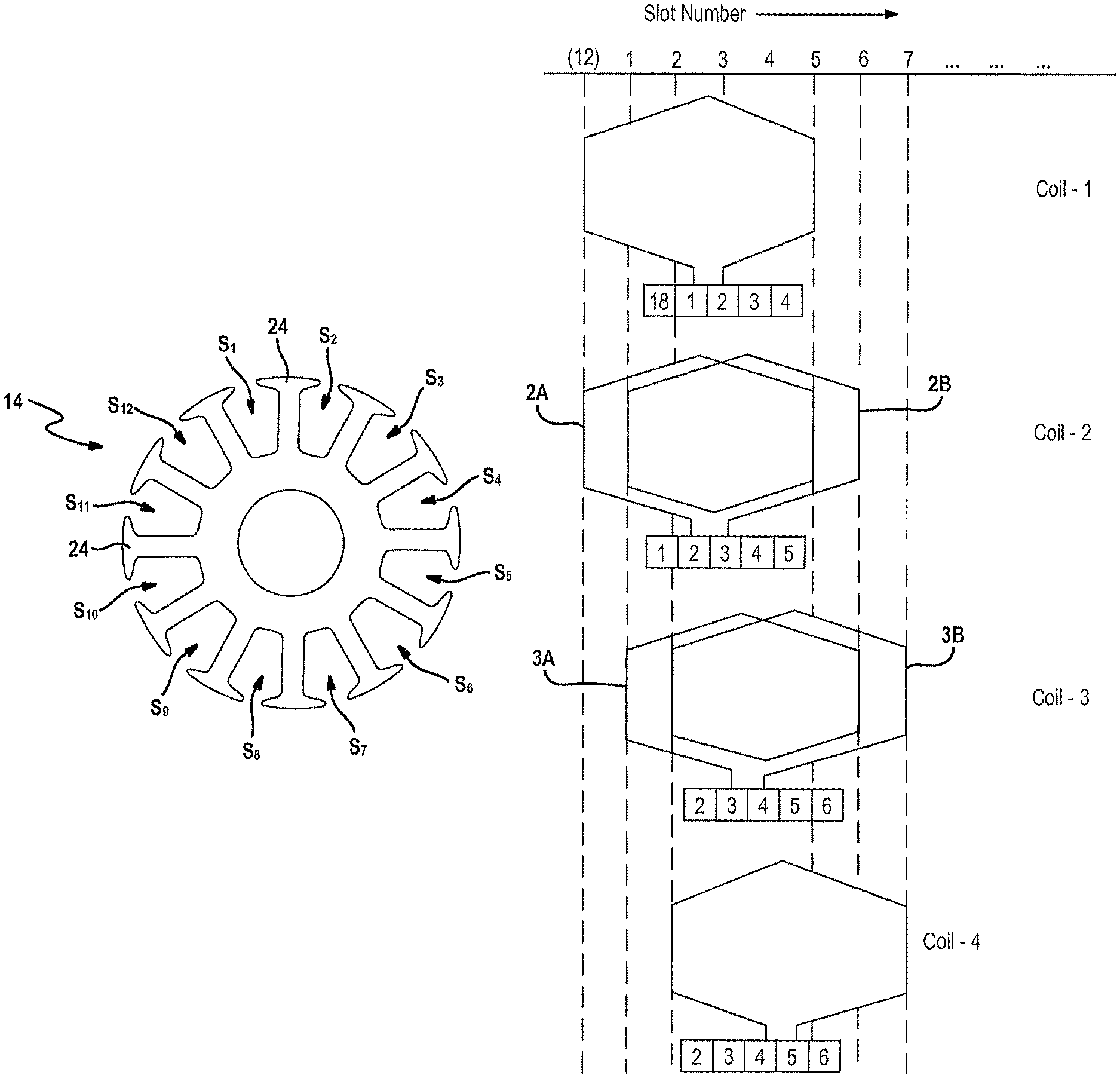

A distributed winding arrangement for an electric motor is provided that reduces brush arcing while reducing the size of the commutator. The electric motor is comprised generally of an armature having a plurality of spaced apart posts defining a plurality of spaced apart winding slots; a stator disposed coaxially with the armature; and a commutator having a plurality of commutator bars, where the number of commutator bars is an integer greater than the number of winding slots but less than twice the number of winding slots provided by the armature.
