Projection optical system, magnification projection optical system, magnification projection apparatus, and image projection apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2020
Grant Date -
N/A
app pub date -
Mar 17, 2017
filing date -
Feb 6, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

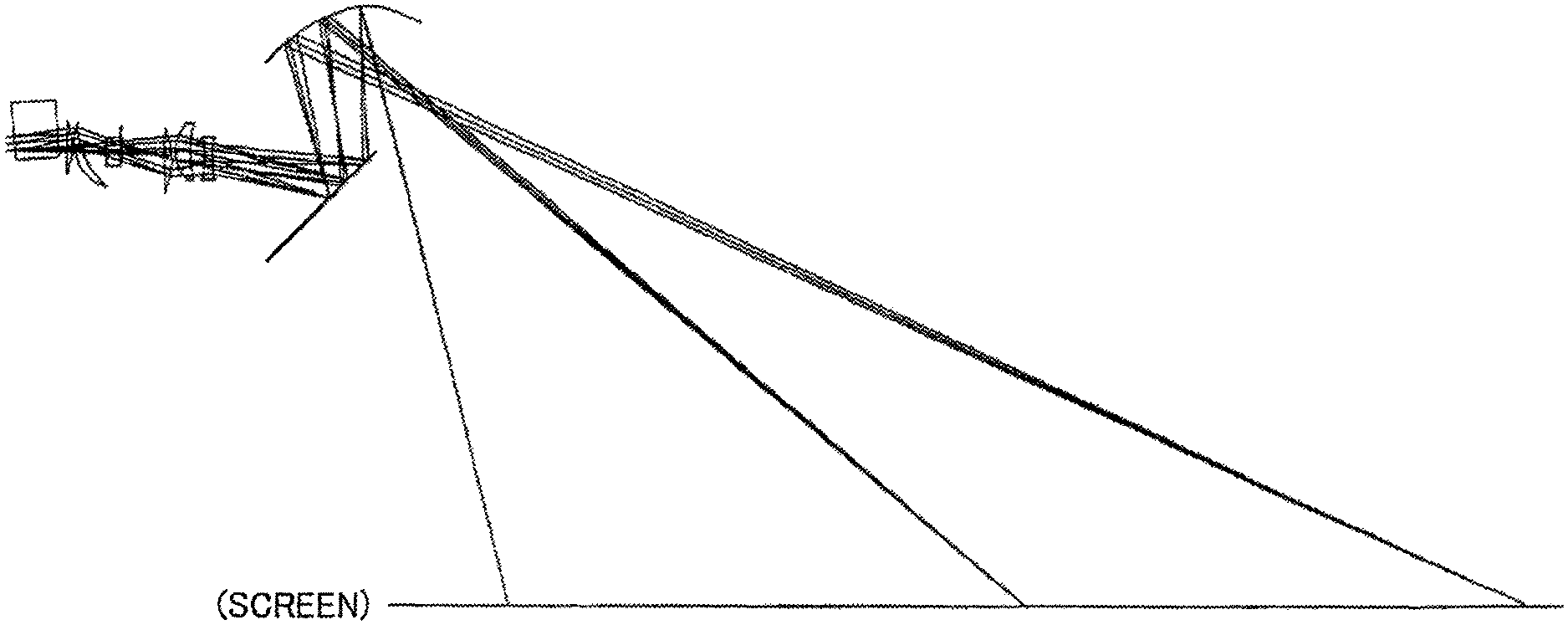

In a projection optical system for use in an image projection apparatus illuminating an image display panel forming an image in accordance with a modulating signal with illumination light from a light source, the projection optical system includes first and second optical systems arranged along an optical path defining an upstream-downstream direction in the order described from upstream to downstream on the downstream side of the image display panel. The first optical system includes at least one dioptric system and has positive power. The second optical system includes at least one reflecting surface having power and has positive power. The image formed by the image display panel is formed as an intermediate image in the optical path, and the intermediate image is magnified and projected.
