Mobile UVA curing system and method for collision and cosmetic repair of vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2020
Grant Date -
N/A
app pub date -
Aug 15, 2017
filing date -
Mar 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

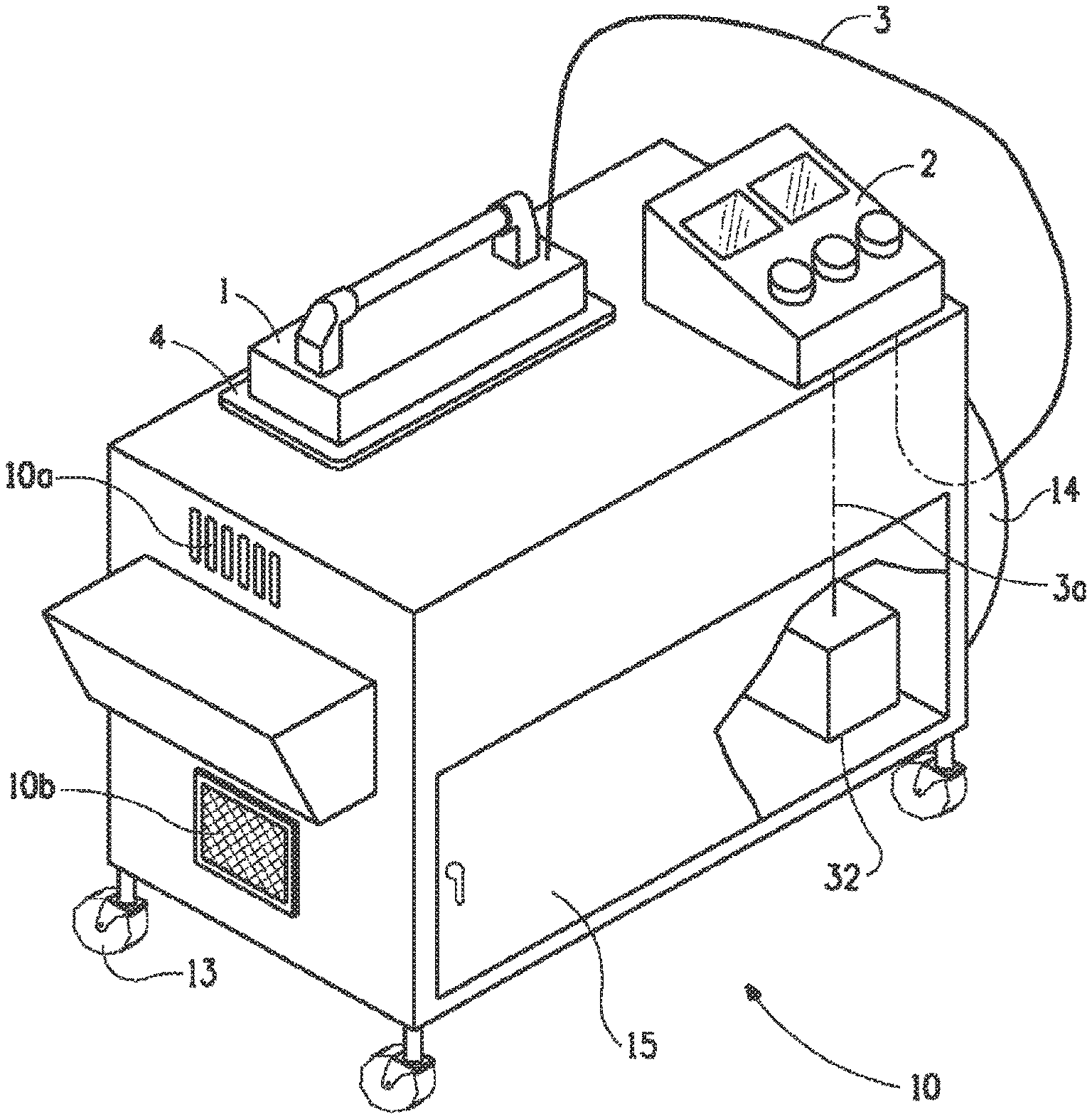

The present invention is directed to mobile radiation systems and methods of use that comprise a mobile UVA irradiator including a power supply, a UVA lamp, a control and system indicator unit; a UV radiation blocker nest having an adaptor opening for receiving a hand-held irradiator when said irradiator is in a seated position in said nest; and a mobile carrier comprising a first compartment for housing said power supply, hand-held irradiator, said irradiator nest, wheels and said control unit. The nest may be configured to conform to the hand-held irradiator to block irradiation from the hand-held irradiator when it is energized and in its seated position. The mobile radiation device produced UVA radiation having peak radiation wavelength in a range of from 250 nm to 450 nm and can have a peak irradiation power in a range of from 0.5 W/cm2 to 10 W/cm2.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B05D Class
- 1239 Applications Filed
- 788 Patents Issued To-Date
- 63.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05D Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 6, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2032 |
