Method for manufacturing lens for electronic spectacles, lens for electronic spectacles, and electronic spectacles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2020
Grant Date -
N/A
app pub date -
Jan 17, 2014
filing date -
Dec 21, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

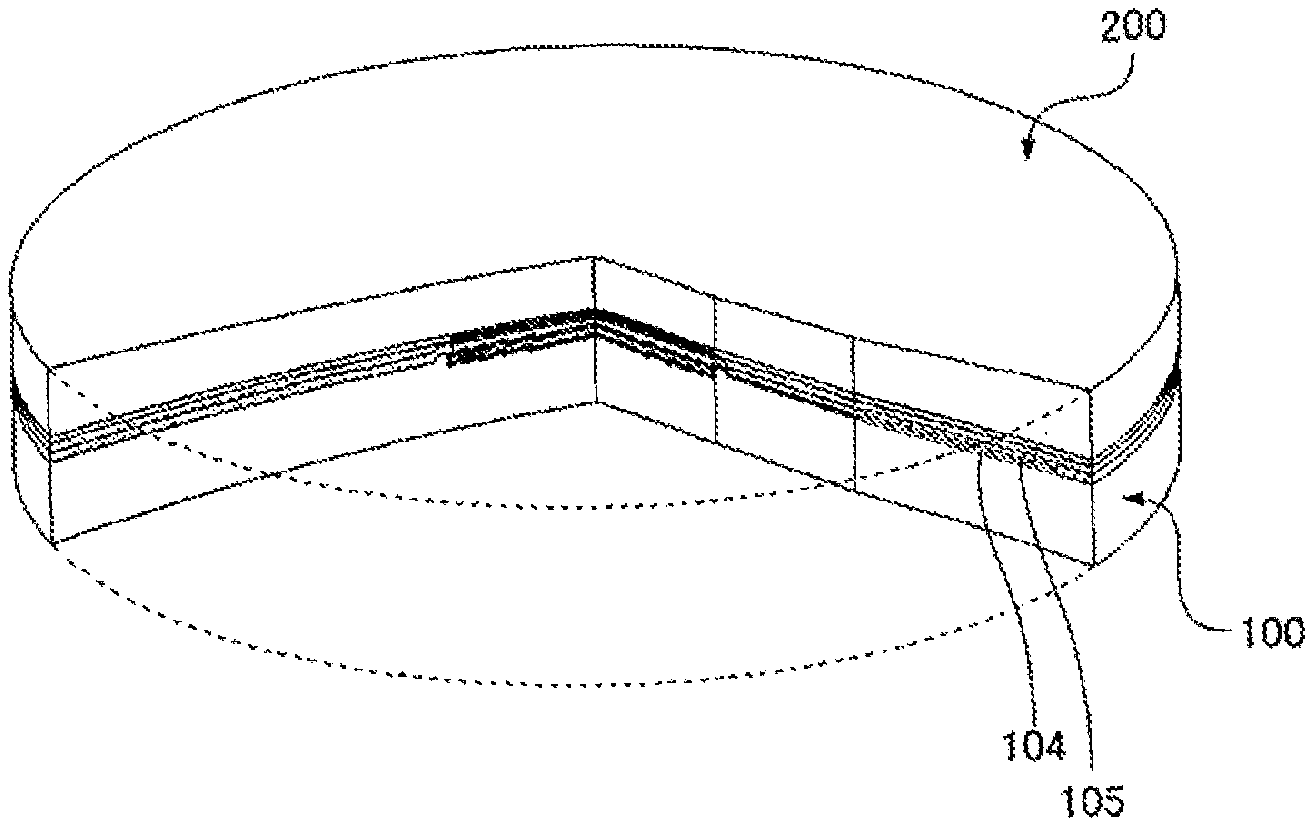

A first recess (102) of a lower substrate (100) is coated with conductive ink to form a first auxiliary electrode layer (104), a lower electrode pattern (105) is formed thereon by vacuum deposition, a second recess (202) of an upper substrate (200) is coated with the conductive ink to form a second auxiliary electrode layer (204), an upper electrode pattern (205) is formed thereon by vacuum deposition, the upper and lower substrates are bonded to each other with an electric element (300) interposed between the lower substrate (100) and the upper substrate (100), and the upper and lower substrates are cut at positions on the overlap portion of the first auxiliary electrode layer (104) and the lower electrode pattern (105) and the overlap portion of the second auxiliary electrode layer (204) and the upper electrode pattern (205) so as to expose the cut surfaces of the substrates.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B29D Class
- 990 Applications Filed
- 780 Patents Issued To-Date
- 78.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29D Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2032 |
