Ultrasonic welding device and ultrasonic welding method for controlling continuous ultrasonic welding processes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2020
Grant Date -
N/A
app pub date -
Jul 26, 2017
filing date -
Dec 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

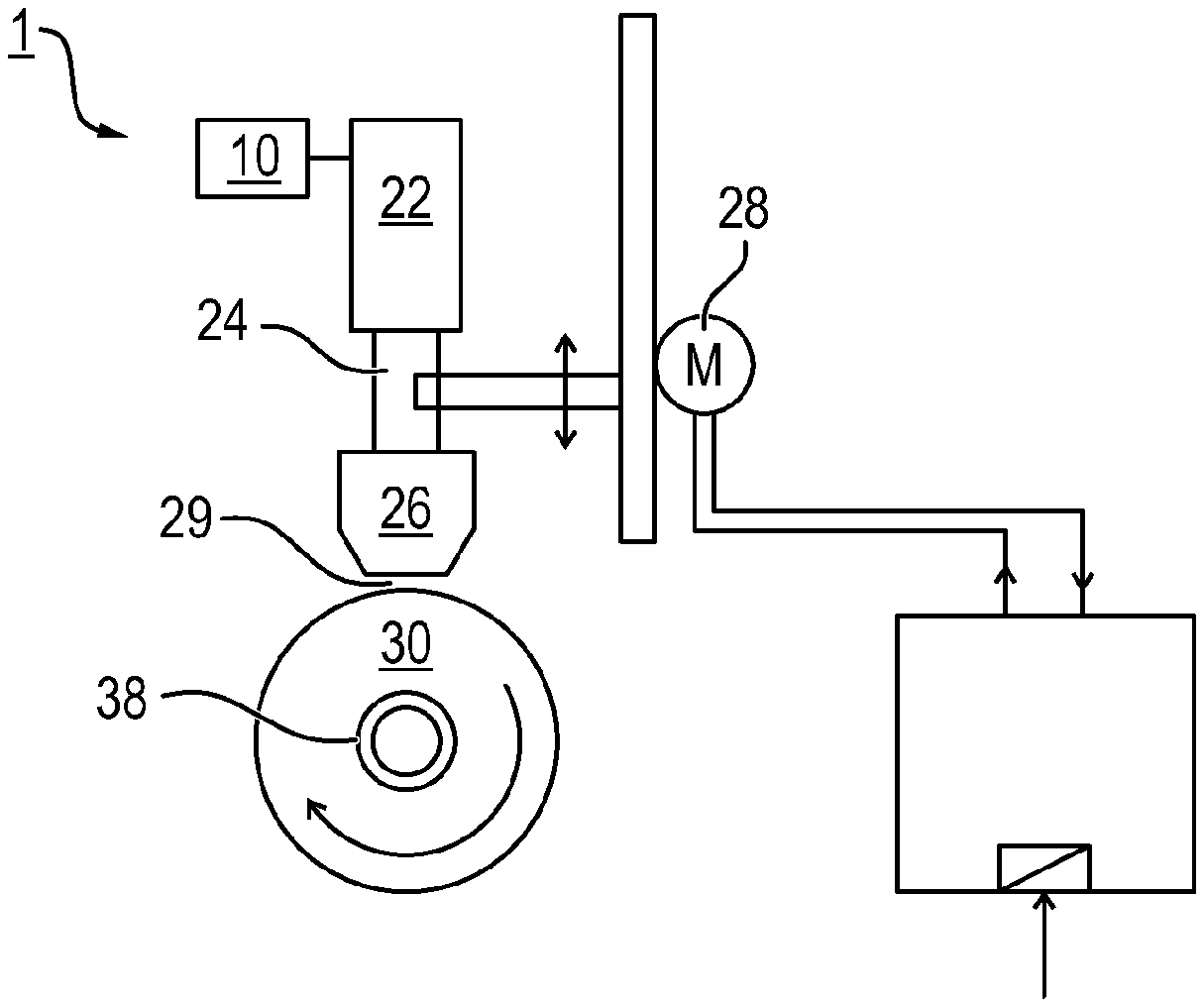

An ultrasonic processing method and an ultrasonic processing device may include a controlling/regulating module, preferably a digital controlling/regulating module, which is integrated into a signal processing of the ultrasonic generator so that a plurality of generator data with respect to the ultrasonic generator are processible in the ultrasonic generator. At this, a power actual value Pist is compared with a power reference value Psoll of the ultrasonic generator via a gap regulator in the controlling/regulating module to specify a position reference value POSsoll of the sonotrode relative to the roll for adjustment of the power reference value Psoll of the ultrasonic generator, and/or a power actual value Pist is compared with a power reference value Psoll of the ultrasonic generator via an amplitude regulator in the controlling/regulating module to specify an amplitude reference value Asoll to the ultrasonic generator for adjustment of the power reference value Psoll.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B29C Class
- 6708 Applications Filed
- 4570 Patents Issued To-Date
- 68.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 4, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2032 |
