Indoor unit of air conditioner and method of connecting refrigerant pipe thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 7, 2020
Grant Date -
N/A
app pub date -
Dec 15, 2017
filing date -
Jul 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

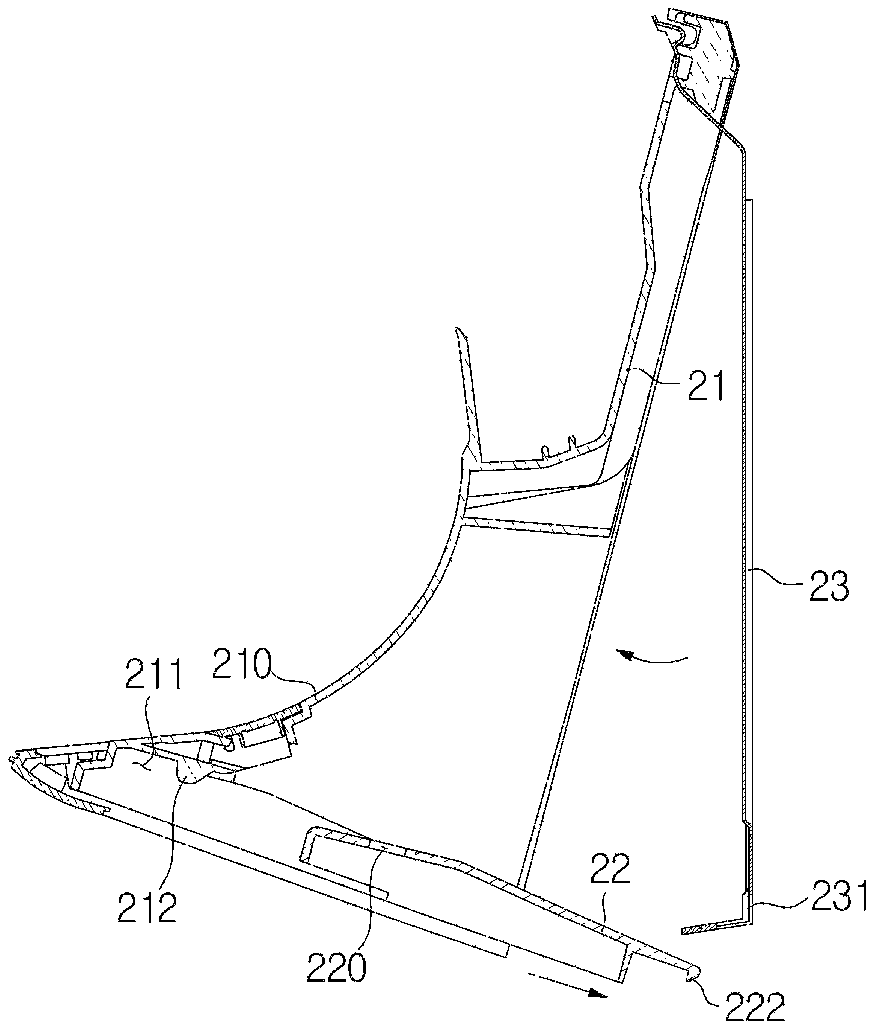

An indoor unit of an air conditioner includes a frame of the indoor unit; a heat exchanger mounted on the frame and having a refrigerant pipe in which a refrigerant flows; a hanger plate mounted on a rear surface of the frame and configured to fix the frame onto a wall surface; and a holder plate mounted on a lower portion of the frame and connecting the frame and the hanger plate. An end of the refrigerant pipe is placed in a space formed by the frame, the holder plate, and the hanger plate. The holder plate is movably connected on a lower portion of the frame, so the refrigerant pipe is accessible to a user to perform an operation of connecting or separating the refrigerant pipe to or from a connection pipe connected to an outdoor unit without rotating the frame.
