Programmable radio frequency waveform generator for a synchrocyclotron

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO RE48047
SERIAL NO

15429078

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

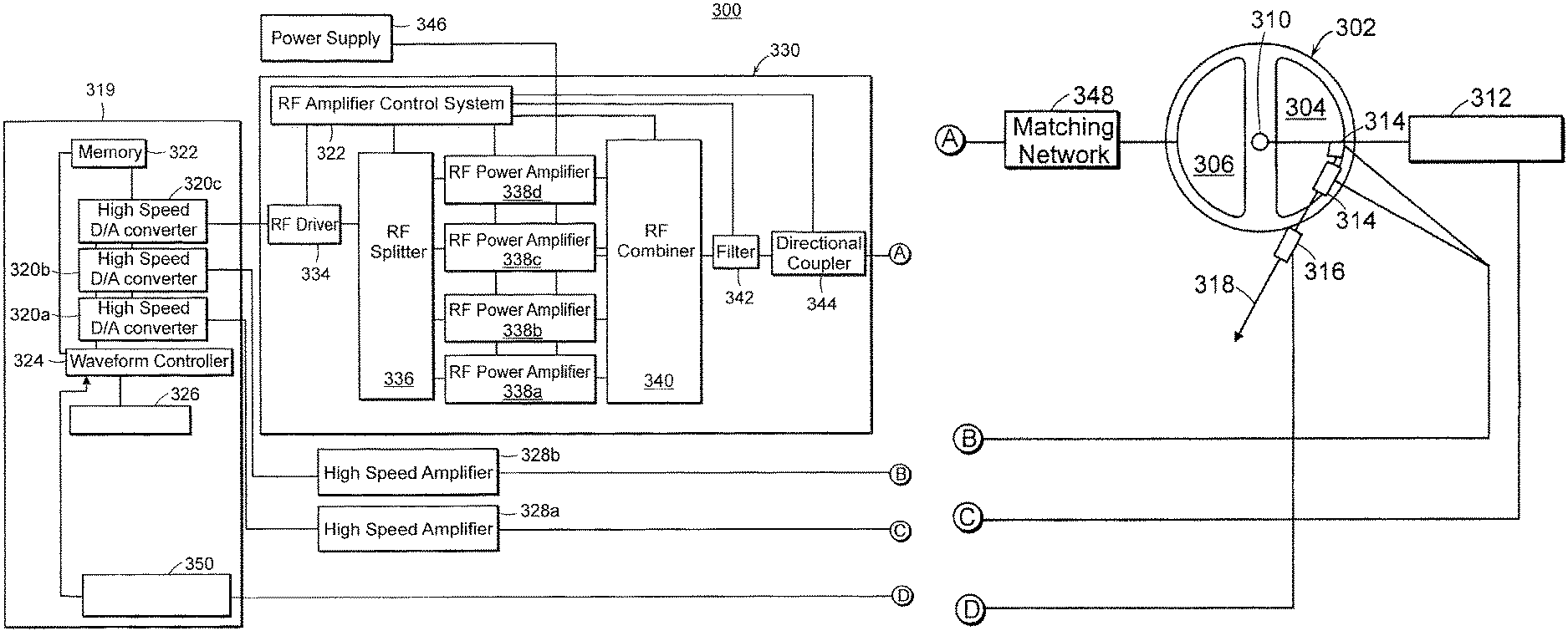

A synchrocyclotron id='REI-00001' date='20200609' comprisesid='REI-00001' id='REI-00002' date='20200609' includes id='REI-00002' a resonant circuit that includes electrodes having a gap therebetween across the magnetic field. An oscillating voltage input, having a variable amplitude and frequency determined by a programmable digital waveform generator generates an oscillating electric field across the gap. The synchrocyclotron can include a variable capacitor in circuit with the electrodes to vary the resonant frequency. The synchrocyclotron can further include an injection electrode and an extraction electrode having voltages controlled by the programmable digital waveform generator. The synchrocyclotron can further include a beam monitor. The synchrocyclotron can detect resonant conditions in the resonant circuit by measuring the voltage id='REI-00003' date='20200609' and orid='REI-00003' id='REI-00004' date='20200609' and/or id='REI-00004' current in the resonant circuit, driven by the input voltage, and adjust the capacitance of the variable capacitor or the frequency of the input voltage to maintain the resonant conditions. The programmable waveform generator can adjust at least one of the oscillating voltage input, the voltage on the injection electrode and the voltage on the extraction electrode according to beam intensity and in response to changes in resonant conditions.
