Simple electronic musical instrument, player's console and signal processing system incorporated therein
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Dec 24, 2019
Issued Date -
N/A
app pub date -
Jun 10, 2015
filing date -
Jun 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

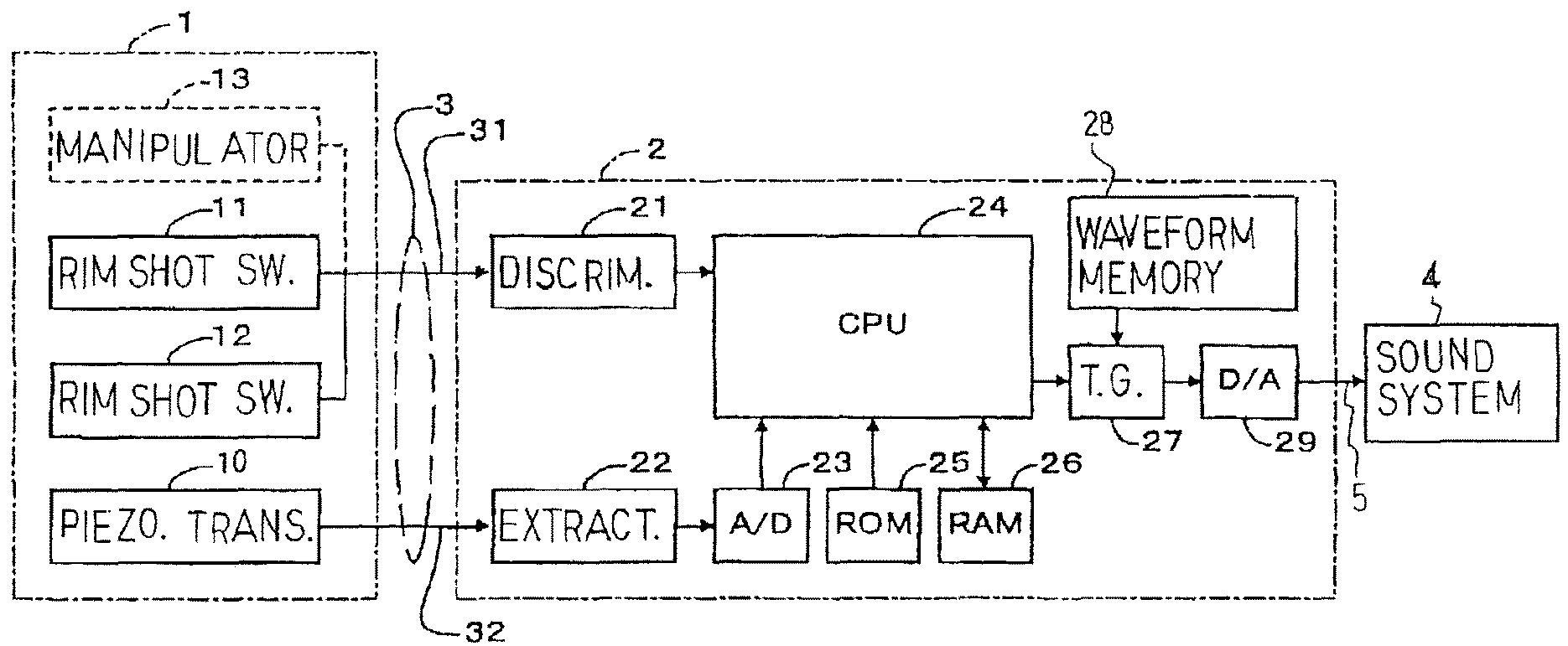

An electronic musical instrument is equipped with plural series combinations of switches and resistors and a piezoelectric transducer associated with a movable member for producing electric signals representative of player's intentions to music sound to be generated, and a signal processing system processes the signals for generating the music sound; the signal processing system has a voltage discriminator so that the plural series combinations are connected in parallel to the voltage discriminator through a single conductive line; a vibration absorber is inserted between the movable member and the piezoelectric transducer so that the piezoelectric transducer exactly converts the motion of the movable member to the electric signal at each player's manipulation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G10H Class
- 279 Applications Filed
- 253 Patents Issued To-Date
- 90.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10H Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 24, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 24, 2031 |
