Group III-nitride layers with patterned surfaces
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Dec 17, 2019
Issued Date -
N/A
app pub date -
Dec 23, 2015
filing date -
Dec 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance

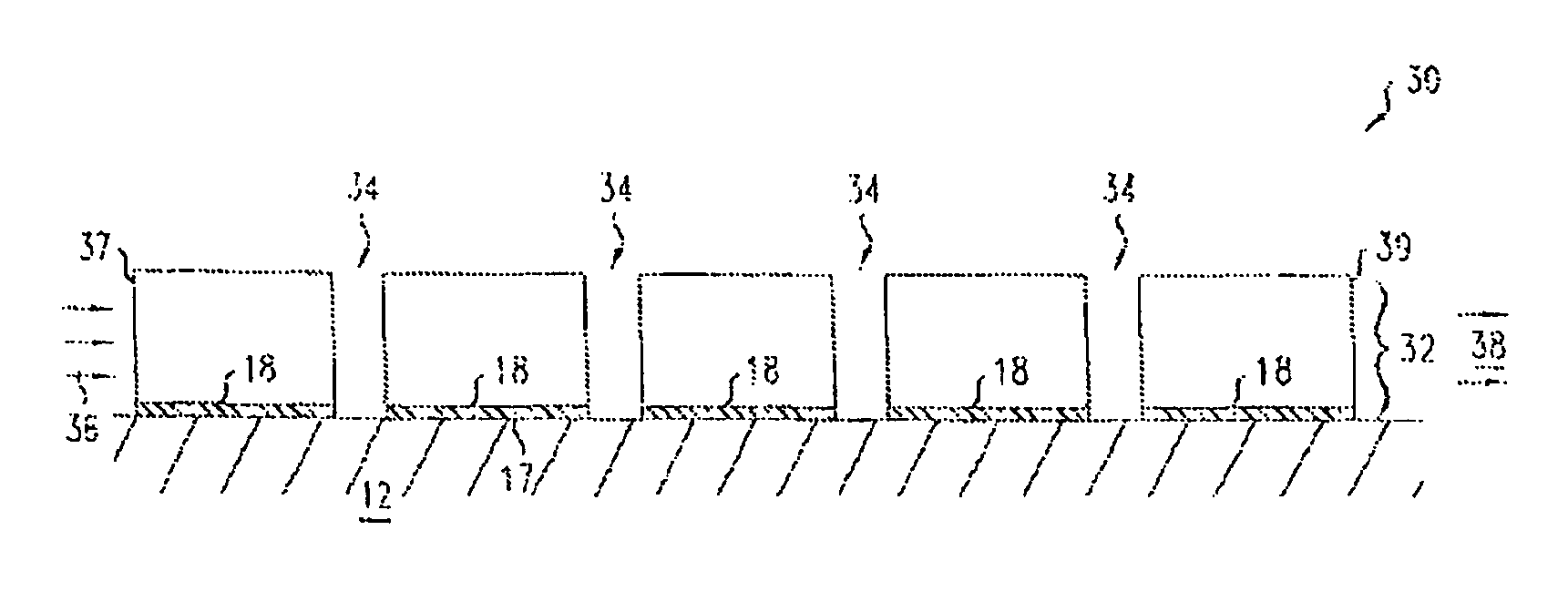

Abstract
A fabrication method produces a mechanically patterned layer of group III-nitride. The method includes providing a crystalline substrate and forming a first layer of a first group III-nitride on a planar surface of the substrate. The first layer has a single polarity and also has a pattern of holes or trenches that expose a portion of the substrate. The method includes then, epitaxially growing a second layer of a second group III-nitride over the first layer and the exposed portion of substrate. The first and second group III-nitrides have different alloy compositions. The method also includes subjecting the second layer to an aqueous solution of base to mechanically pattern the second layer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 17, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 17, 2031 |
