Charge pump for PLL/DLL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2019
Grant Date -
N/A
app pub date -
Jul 17, 2014
filing date -
Jul 17, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

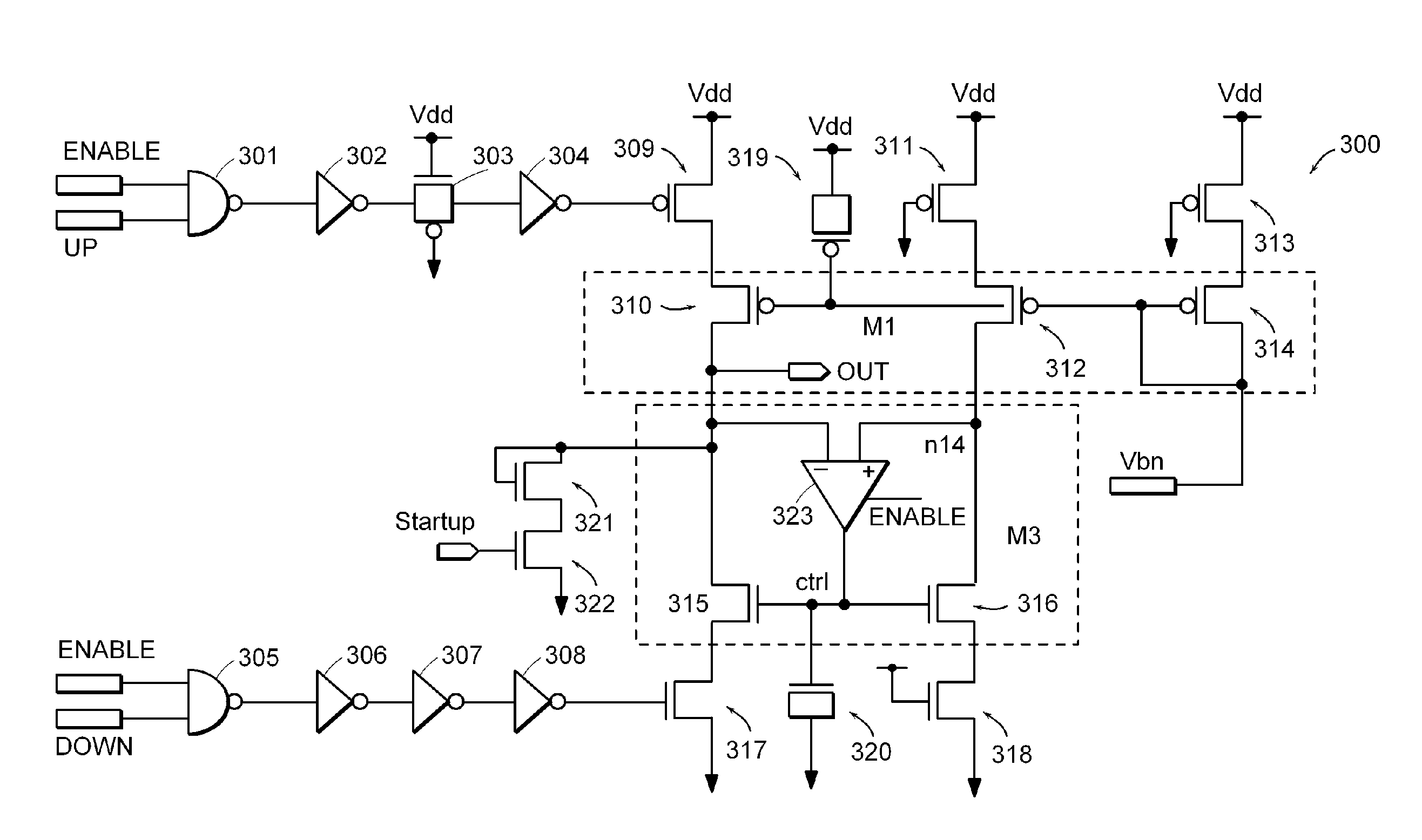

A charge pump for use in a Phase Locked Loop/Delay Locked Loop minimizes static phase error through the use of an operational amplifier. The operational amplifier also mitigates the effects of low power supply voltage.
