Touch sensing device, touch sensing unit, storage medium and touch sensing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2019
Grant Date -
N/A
app pub date -
Jun 30, 2016
filing date -
Jun 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

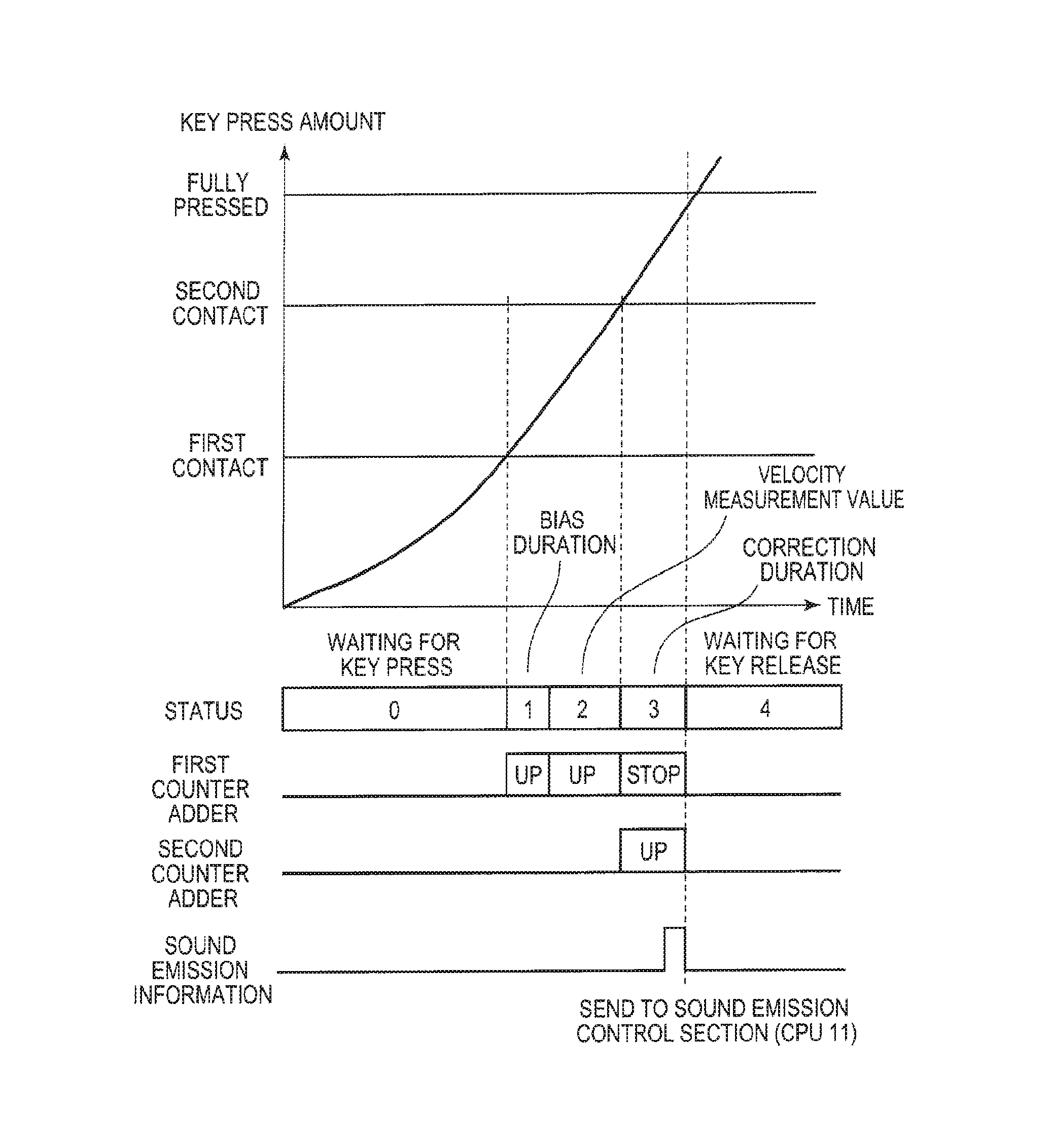

A first contact and a second contact are provided at each of a plurality of keys, and are successively closed in accordance with a key press operation. On the basis of respective closed sense signals from the first contact and the second contact, a duration from when the first contact is closed until the second contact is closed is counted as a first count value and then a duration after this counting has ended is counted as a second count value. An attainment duration value and the second count value are compared, and when a predetermined condition is satisfied, a control signal is outputted. When this control signal is received, sound emission information instructing an emission of a sound by a sound emission controller is sent. The sound emission information includes touch information based on the first count value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G10H Class
- 289 Applications Filed
- 247 Patents Issued To-Date
- 85.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10H Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 5, 2031 |
