Multi charged particle beam writing method and multi charged particle beam writing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 6, 2019
Grant Date -
N/A
app pub date -
May 9, 2016
filing date -
May 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

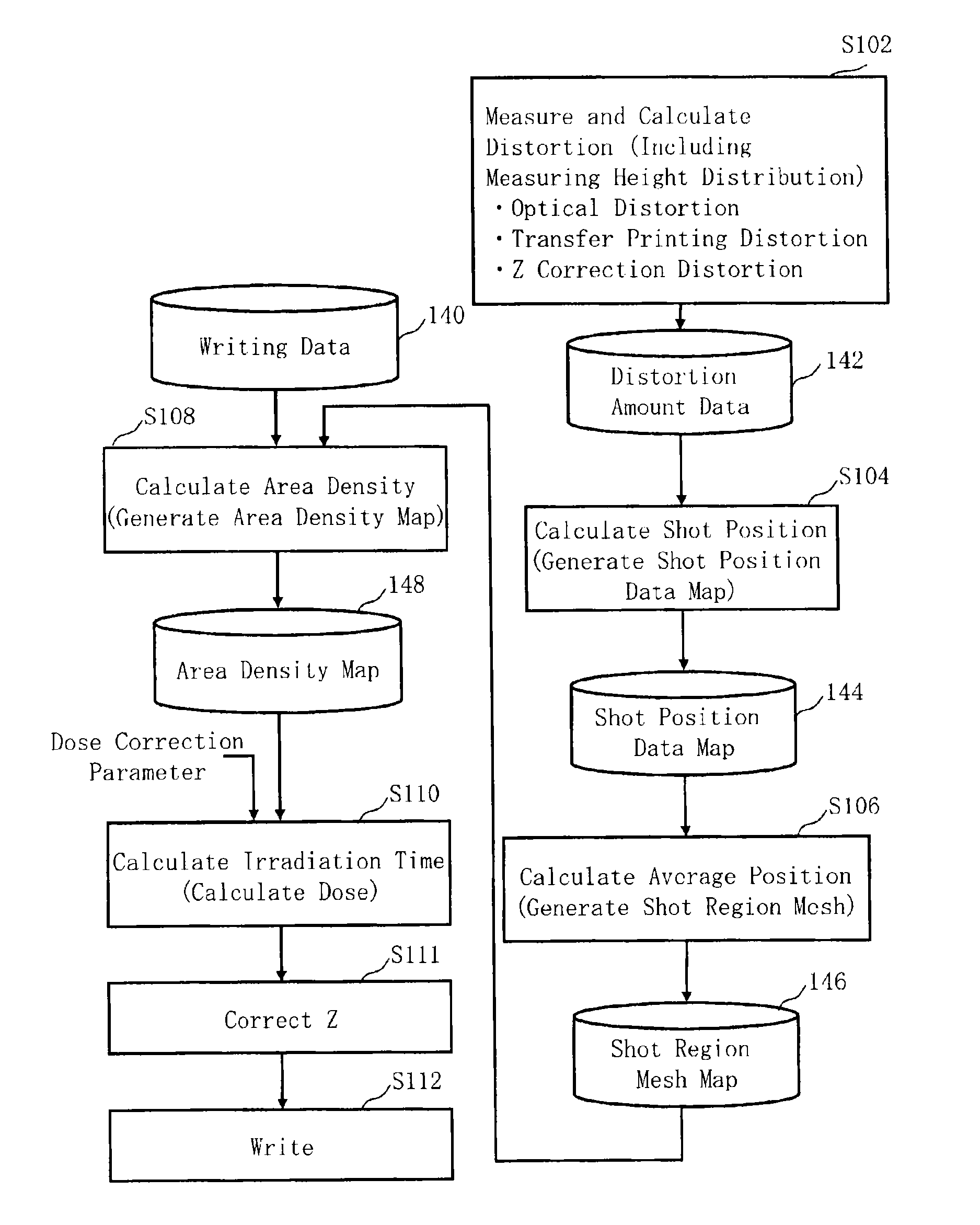

A multi charged particle beam writing method includes calculating first shot positions of multiple beams, each of which includes a distortion amount of an irradiating corresponding beam, in a case of irradiating each beam, based on control grid intervals, calculating first condition positions based on a pre-set condition, each of which is arranged in a corresponding first region surrounded by closest second shot positions of 2×2 in length and width of the first shot positions, calculating, for each of second regions respectively surrounded by closest second condition positions of the first condition positions, an area density of a figure pattern in overlapping with a second region concerned, calculating an irradiation amount or an irradiation time of each beam whose corresponding first shot position is in a corresponding second region, based on an area density, and writing a pattern by irradiating a beam of the calculated irradiation amount or time.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01J Class
- 2255 Applications Filed
- 1758 Patents Issued To-Date
- 77.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01J Class
- 40.21 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 6, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 6, 2031 |
