UV inkjet printing of vision control panels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 18, 2019
Grant Date -
N/A
app pub date -
Aug 3, 2015
filing date -
Feb 21, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

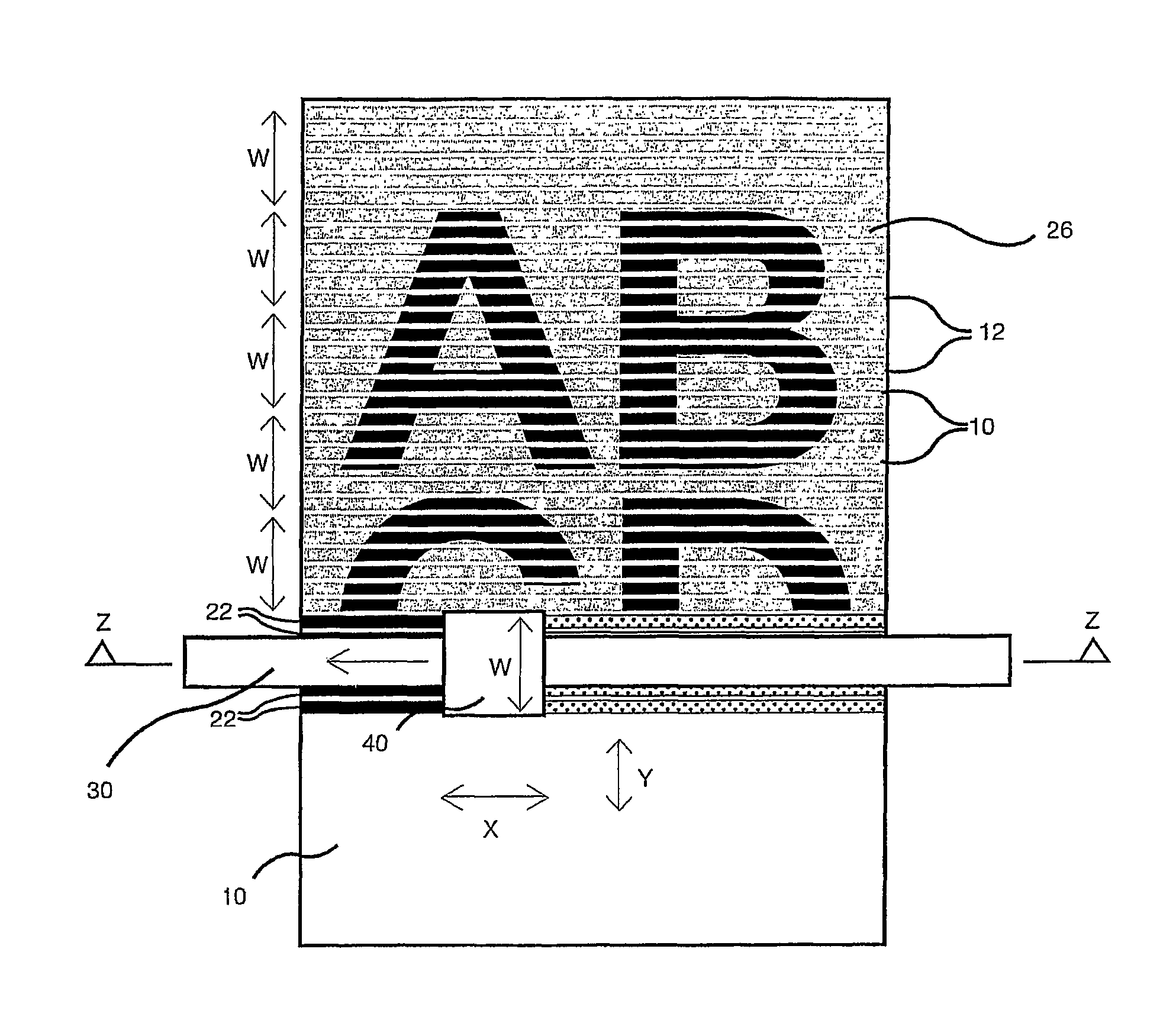

This invention concerns vision control panels and a method of UV inkjet printing vision control panels. A substantially imperforate light permeable material is partially printed with a ‘print pattern’ comprising a base layer and a design layer comprising a design colour layer. The method is limited to digital UV inkjet printing of all the superimposed layers required to make such panels. Optionally, the method uses a novel printhead array with a novel order of ink color supply and/or novel software to enable the required build-up of ink layers, for example of black, optional silver, white, cyan, magenta, yellow and process black colors. Printing is preferably arranged so that the base layer and design color layer are printed in the minimum number of passes of the printhead assembly of the digital UV inkjet printer to achieve the desired effect, preferably in one pass of the printhead assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B41M Class
- 432 Applications Filed
- 355 Patents Issued To-Date
- 82.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 18, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 18, 2030 |
