Output stage circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 2019
Grant Date -
N/A
app pub date -
Jun 20, 2016
filing date -
Mar 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

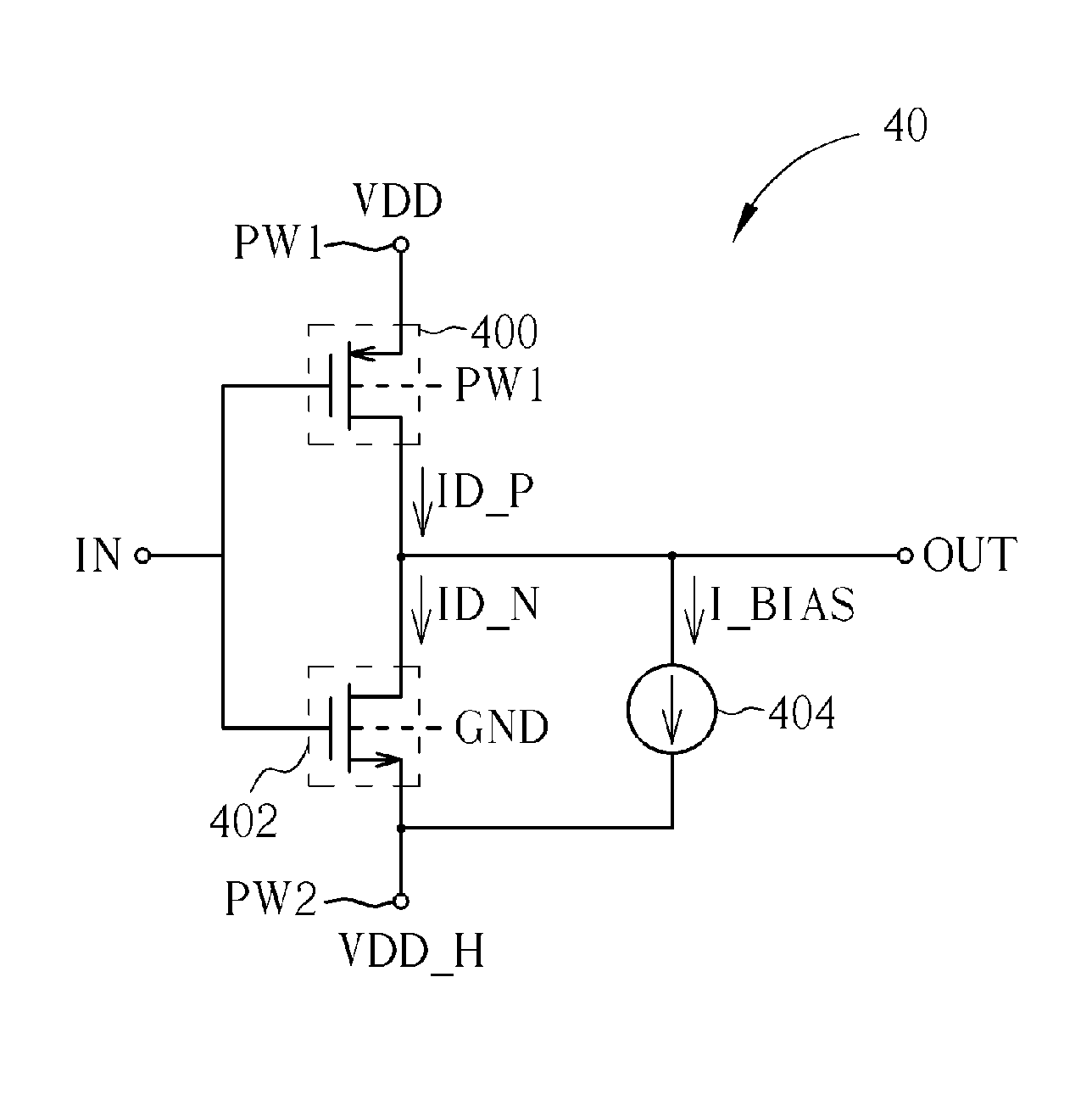

An output stage circuit includes: a first transistor, including a first terminal coupled to a first node, a second terminal coupled to an output terminal, a third terminal coupled to an input terminal for receiving an input voltage, and a fourth terminal coupled to a first power terminal for receiving a first voltage; a second transistor, including a first terminal coupled to a second node, a second terminal coupled to the output terminal, a third terminal coupled to the input terminal for receiving the input voltage, and a fourth terminal coupled to ground; and a current source, coupled to the output terminal for providing a constant current.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H03B Class
- 424 Applications Filed
- 378 Patents Issued To-Date
- 89.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03B Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 11, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 11, 2030 |
