Nozzle arrangement and method of making the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 19, 2019
Grant Date -
N/A
app pub date -
Aug 31, 2017
filing date -
Aug 31, 2017
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

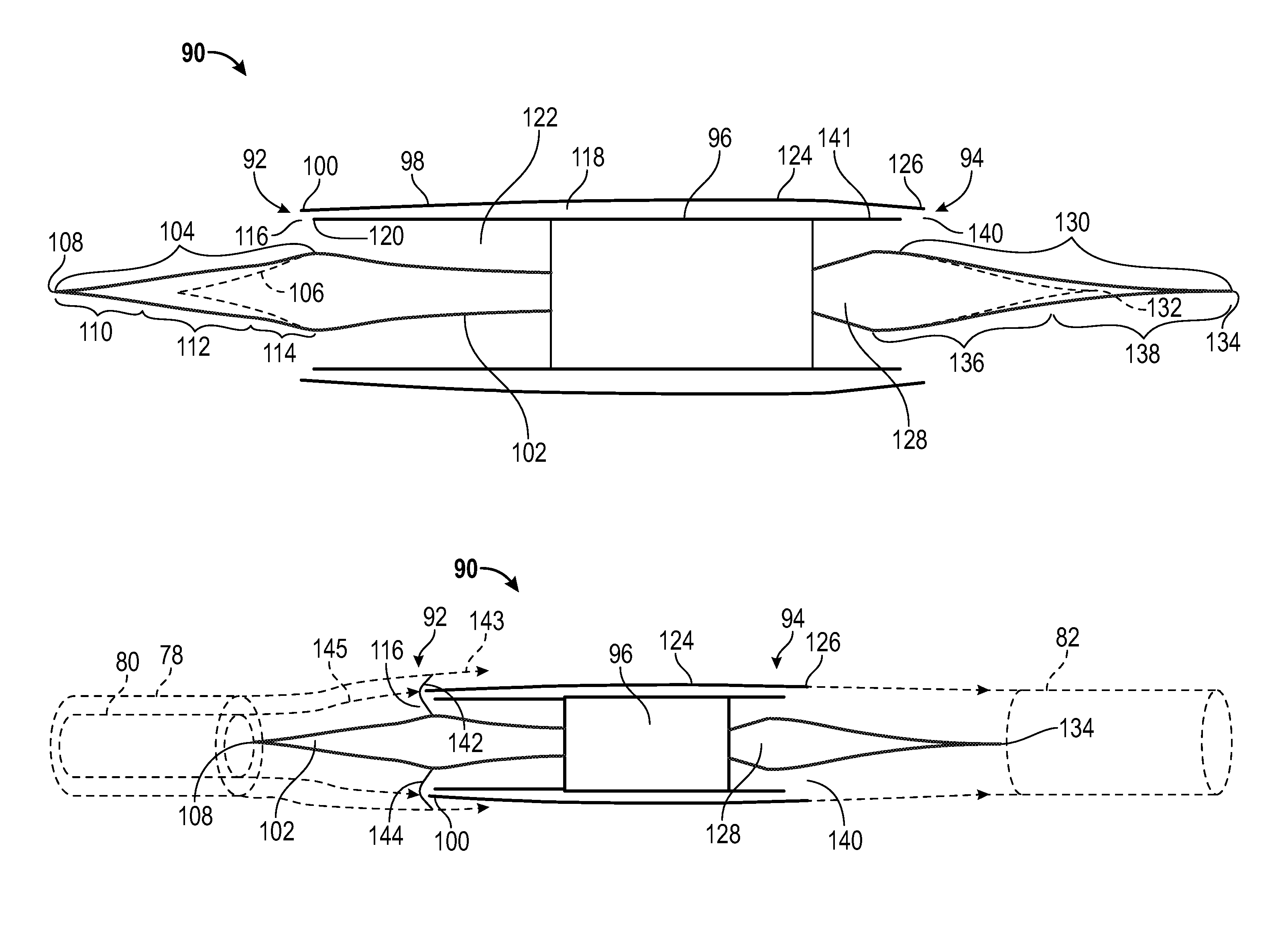

A nozzle arrangement is disclosed herein for use with a supersonic jet engine that is configured to produce a plume of exhaust gases. The nozzle arrangement includes, but is not limited to, a nozzle having a trailing edge and a plug body partially positioned within the nozzle. The plug body has an expansion surface and a compression surface downstream of the expansion surface. A protruding portion of the plug body extends downstream of the trailing edge for a length greater than a conventional plug body length. The plug body is configured to shape the exhaust gases to flow substantially parallel to a free stream of air flowing off of the trailing edge of the nozzle and to cause the plume of exhaust gases to isentropically turn the free stream of air to move in a direction parallel to a longitudinal axis of the plug body.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
