ESD protection device and method for producing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 27, 2018
Grant Date -
N/A
app pub date -
Oct 6, 2016
filing date -
Oct 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

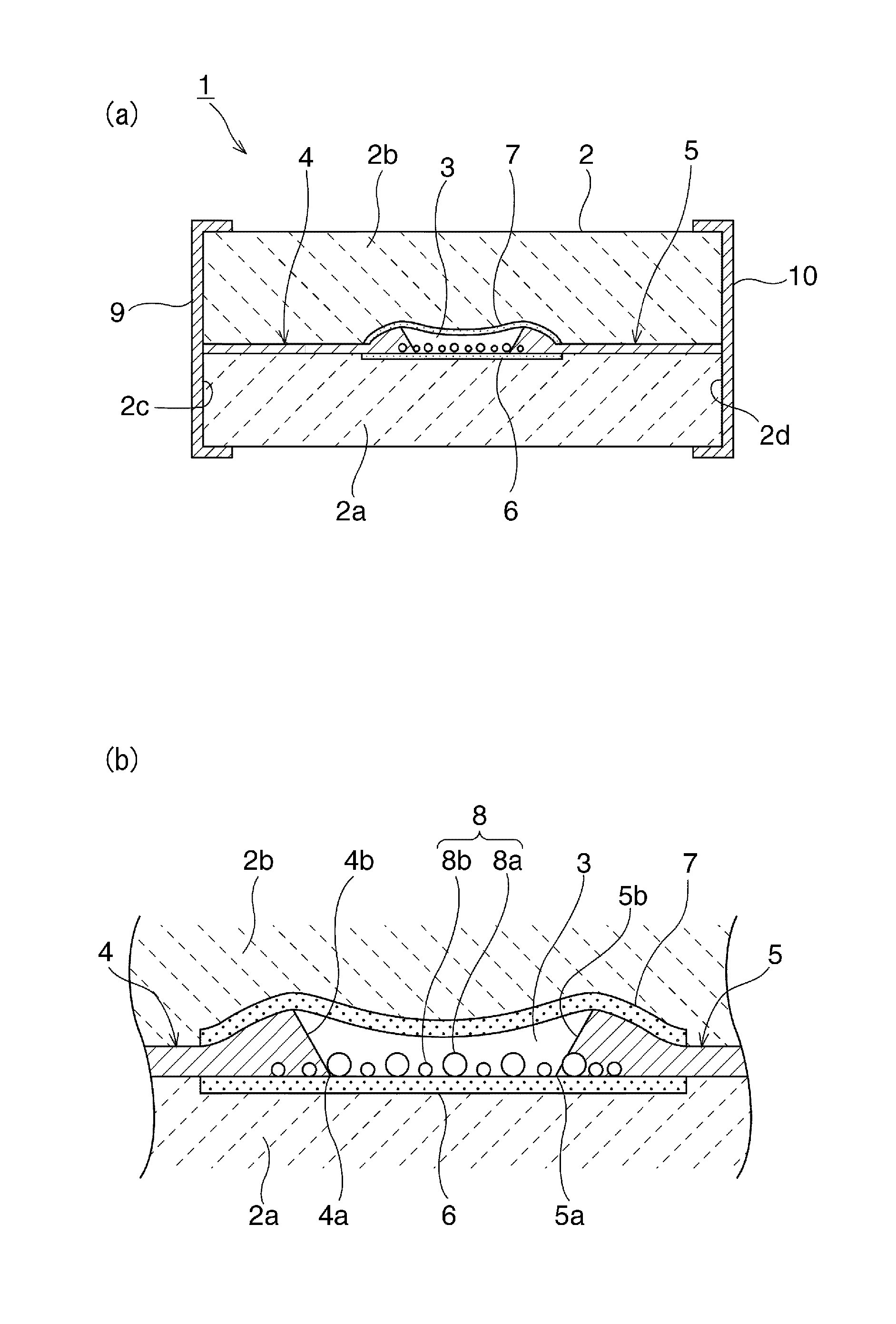

An ESD protection device is provided which experiences only small increases in discharge start voltage and discharge protection voltage and relatively free of scorching or peeling at the ends of the discharge electrodes thereof even if a discharge repeatedly occurs. The ESD protection device has an insulating substrate with a cavity, and in the cavity first and second discharge electrodes are so disposed that the ends thereof face each other with a gap therebetween. A first outer electrode is on the outer surface of the insulating substrate and electrically connected to the first discharge electrode, and a second outer electrode is on the outer surface of the insulating substrate and electrically connected to the second discharge electrode. The ends of the first and second discharge electrodes are thicker than any other portion of the first and second discharge electrodes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H05F Class
- 69 Applications Filed
- 46 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 27, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 27, 2030 |
