High field magnetic resonance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 4, 2018
Grant Date -
N/A
app pub date -
Sep 20, 2012
filing date -
Sep 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

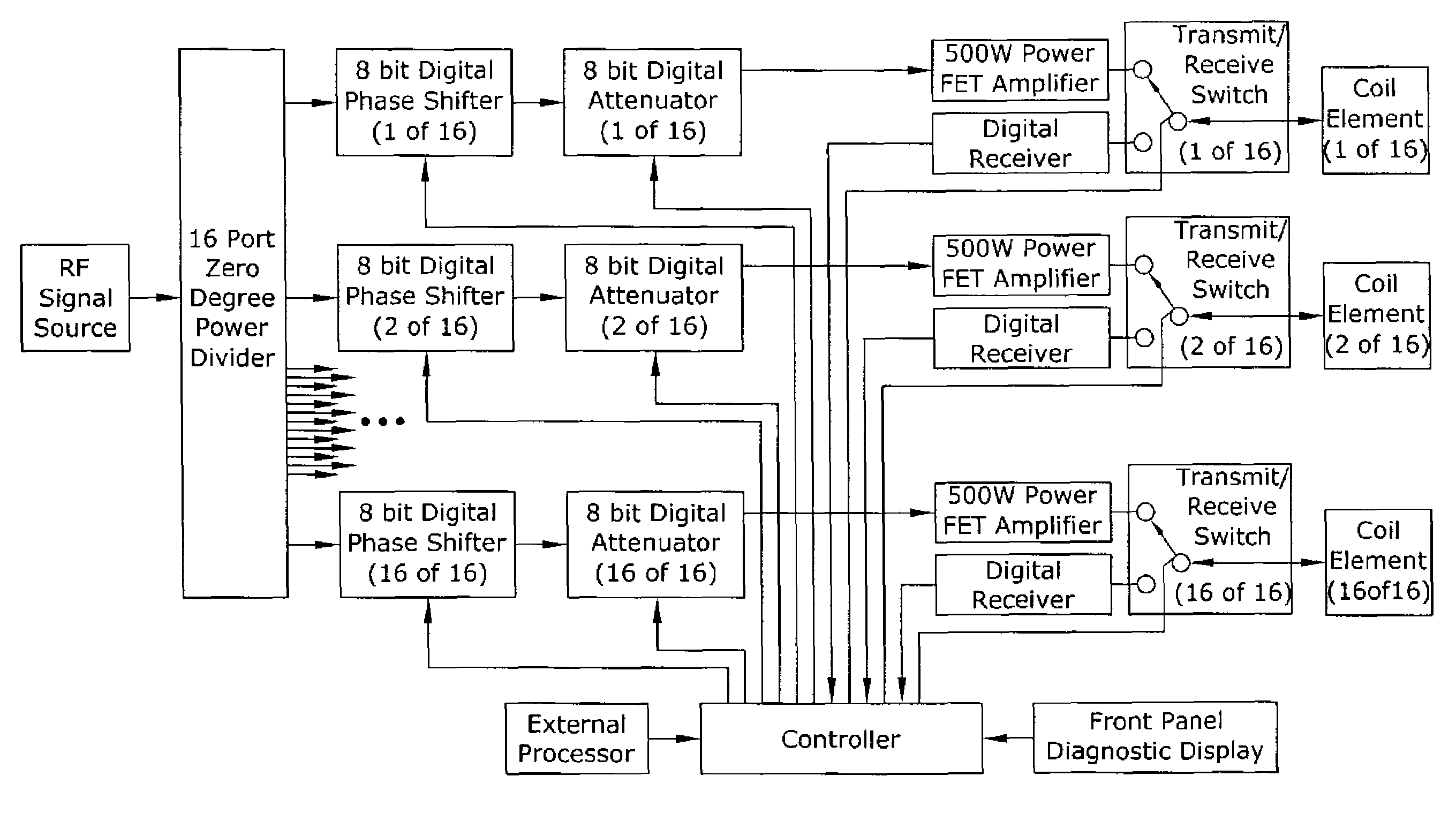

A magnetic resonance system is disclosed. The system includes a transceiver having a multichannel receiver and a multichannel transmitter, where each channel of the transmitter is configured for independent selection of frequency, phase, time, space, and magnitude, and each channel of the receiver is configured for independent selection of space, time, frequency, phase and gain. The system also includes a magnetic resonance coil having a plurality of current elements, with each element coupled in one to one relation with a channel of the receiver and a channel of the transmitter. The system further includes a processor coupled to the transceiver, such that the processor is configured to execute instructions to control a current in each element and to perform a non-linear algorithm to shim the coil.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G01R Class
- 4082 Applications Filed
- 3482 Patents Issued To-Date
- 85.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G01R Class
- 23.34 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 4, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 4, 2030 |
