Optical modulator module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 3, 2018
Issued Date -
N/A
app pub date -
Apr 21, 2016
filing date -
Aug 30, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

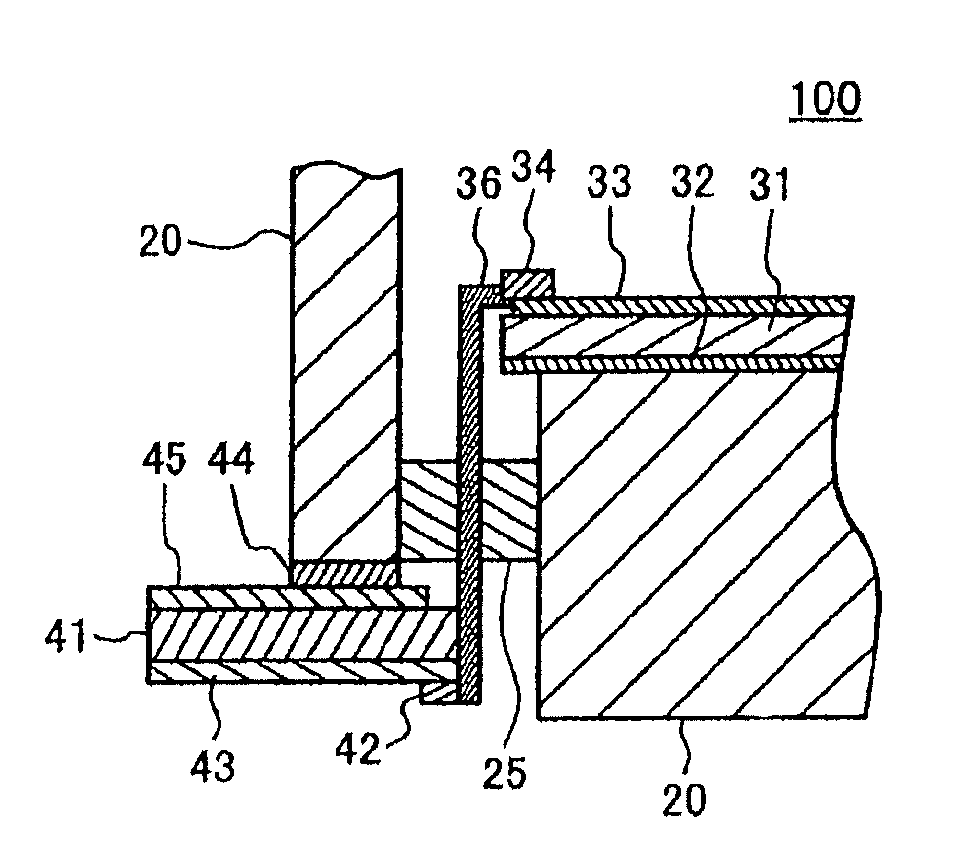

Disclosed is an optical modulator module including an optical modulator configured to have a signal electrode and a ground electrode; a conductive package configured to accommodate the optical modulator and have electrical continuity with the ground electrode of the optical modulator; a substrate configured to have a ground electrode on a first surface thereof electrically connected to the package by solder or a conductive adhesive and have a signal electrode on another surface thereof; and a lead pin configured to electrically connect the signal electrode of the optical modulator to the signal electrode of the substrate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01P Class
- 694 Applications Filed
- 597 Patents Issued To-Date
- 86.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01P Class
- 35.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 3, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 3, 2030 |
