Universal carrier for grippers in a coiled tubing injector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
N/A
app pub date -
Apr 10, 2012
filing date -
May 2, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

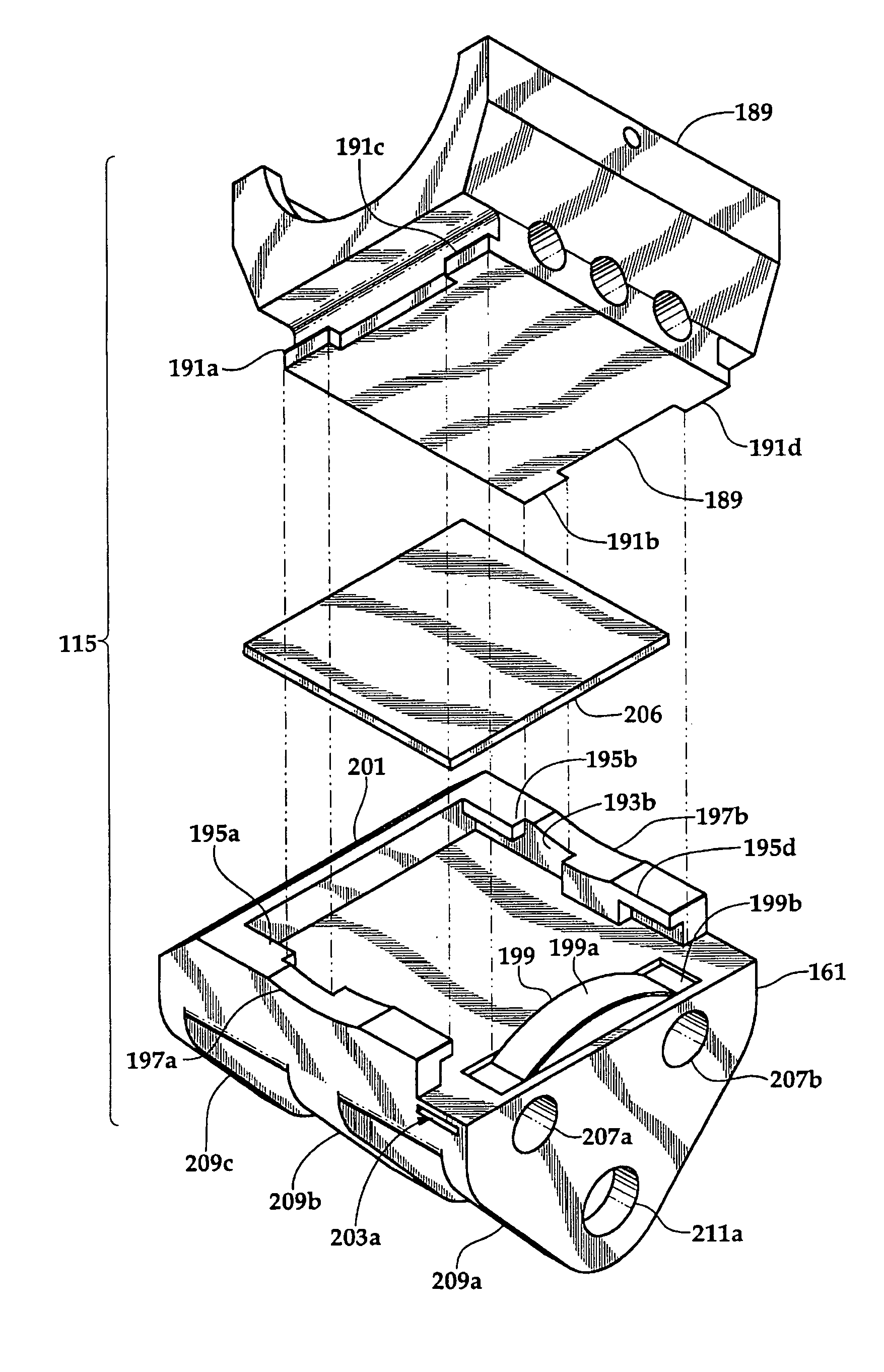

The gripping element of a coiled tubing injector has a carrier and a removable gripping shoe mounted to the carrier. The removable shoe slides onto slots formed on the carrier and is floated on the carrier by inserting an elastomeric pad sandwiched between the carrier and shoe. A manually depressible spring along ones side of the carrier prevents the shoe from sliding out of the slots during operation of the injector.
