Locking adjustment dial mechanism for riflescope
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2016
Grant Date -
N/A
app pub date -
Mar 3, 2015
filing date -
Jan 31, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

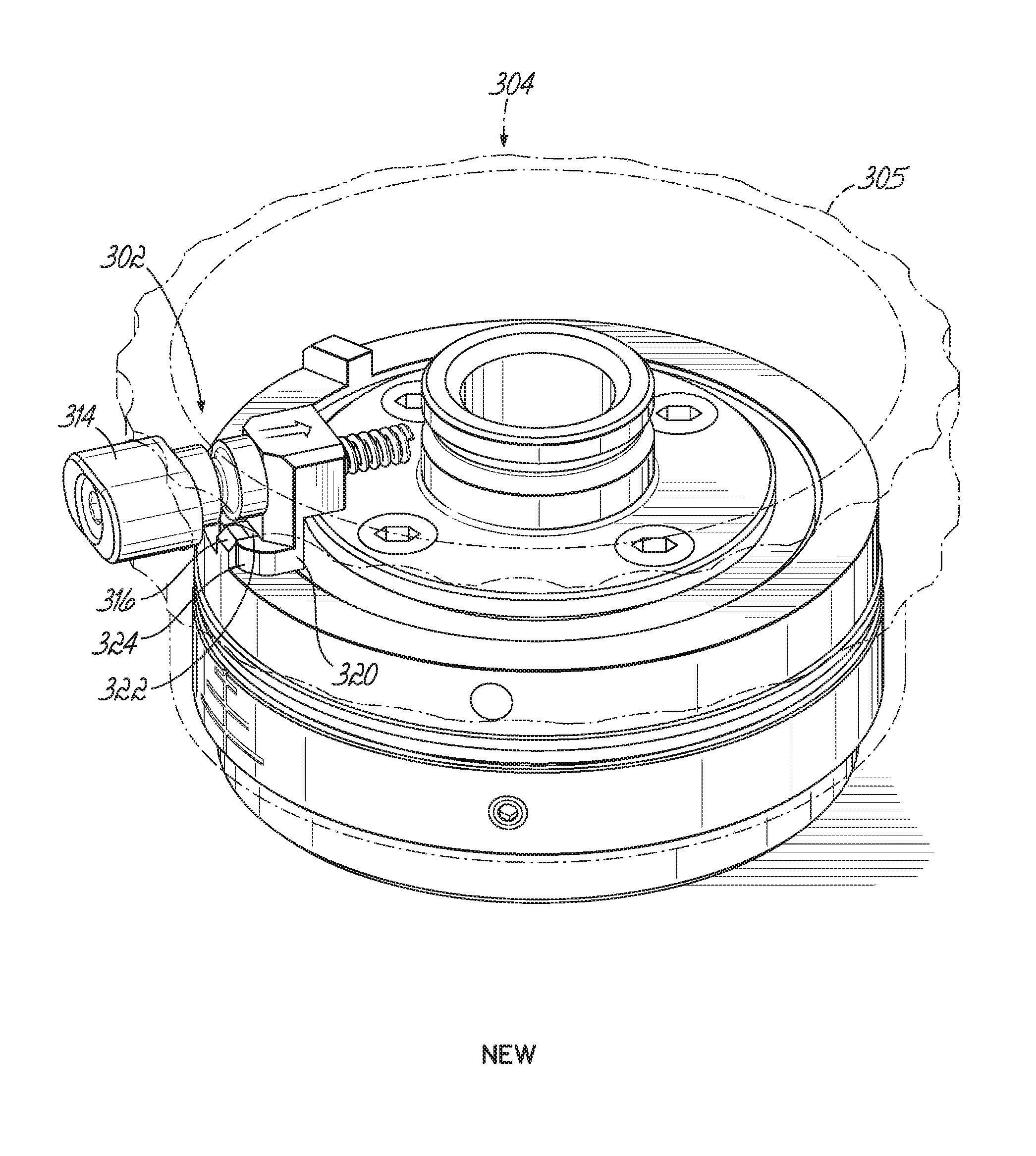

Described is a locking stop mechanism for a riflescope that includes at least one rotatable reticle adjustment dial mounted on a scope body. It includes a stop member on the adjustment dial at a preselected position and a lock member on the scope body. The lock member is positioned to engage the stop member upon rotation of the adjustment dial to a preselected setting. The lock member is configured to prevent rotation of the adjustment dial in either direction when engaged with the stop member while allowing free rotation in at least one direction when the lock member is manually displaced and when the stop member is not engaged with the lock member at the preselected setting.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F41G Class
- 269 Applications Filed
- 238 Patents Issued To-Date
- 88.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 17 Citation Count
- F41G Class
- 67.81 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 24, 2027 |
