Dynamically directed workpiece positioning system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
Jul 21, 2016
filing date -
Jul 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

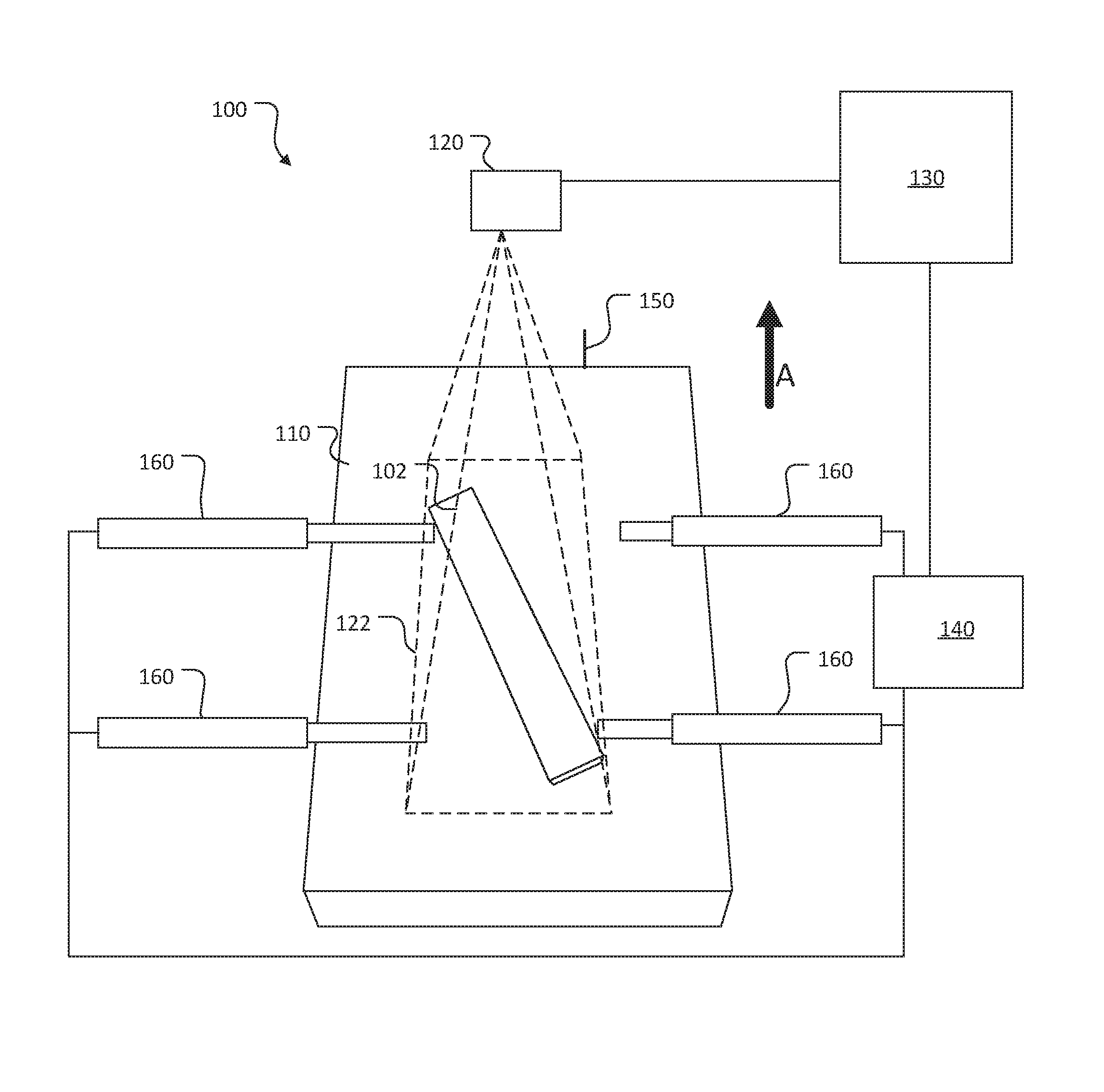

In various embodiments, a dynamically directed workpiece positioning system may include a transport, a sensor positioned to detect a workpiece on the transport, a cutting member positioned along or downstream of the transport, and a computer system. The sensor may scan the workpiece as the workpiece is moved relative to the transport by a human operator or a positioning device. Based on the scan data, the computer system may generate commands to guide the human operator or positioning device in moving the workpiece to a desired position corresponding to a cut solution for the workpiece. Optionally, the computer system may cause the cutting member to be repositioned while the workpiece is being moved relative to the transport. Once the workpiece is in the desired position, the transport may be used to move the workpiece toward the cutting member. Corresponding methods and apparatuses are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B26D Class
- 453 Applications Filed
- 316 Patents Issued To-Date
- 69.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B26D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
