Support pad for a drill head and method for designing and manufacturing a support pad
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
Aug 17, 2016
filing date -
Aug 22, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

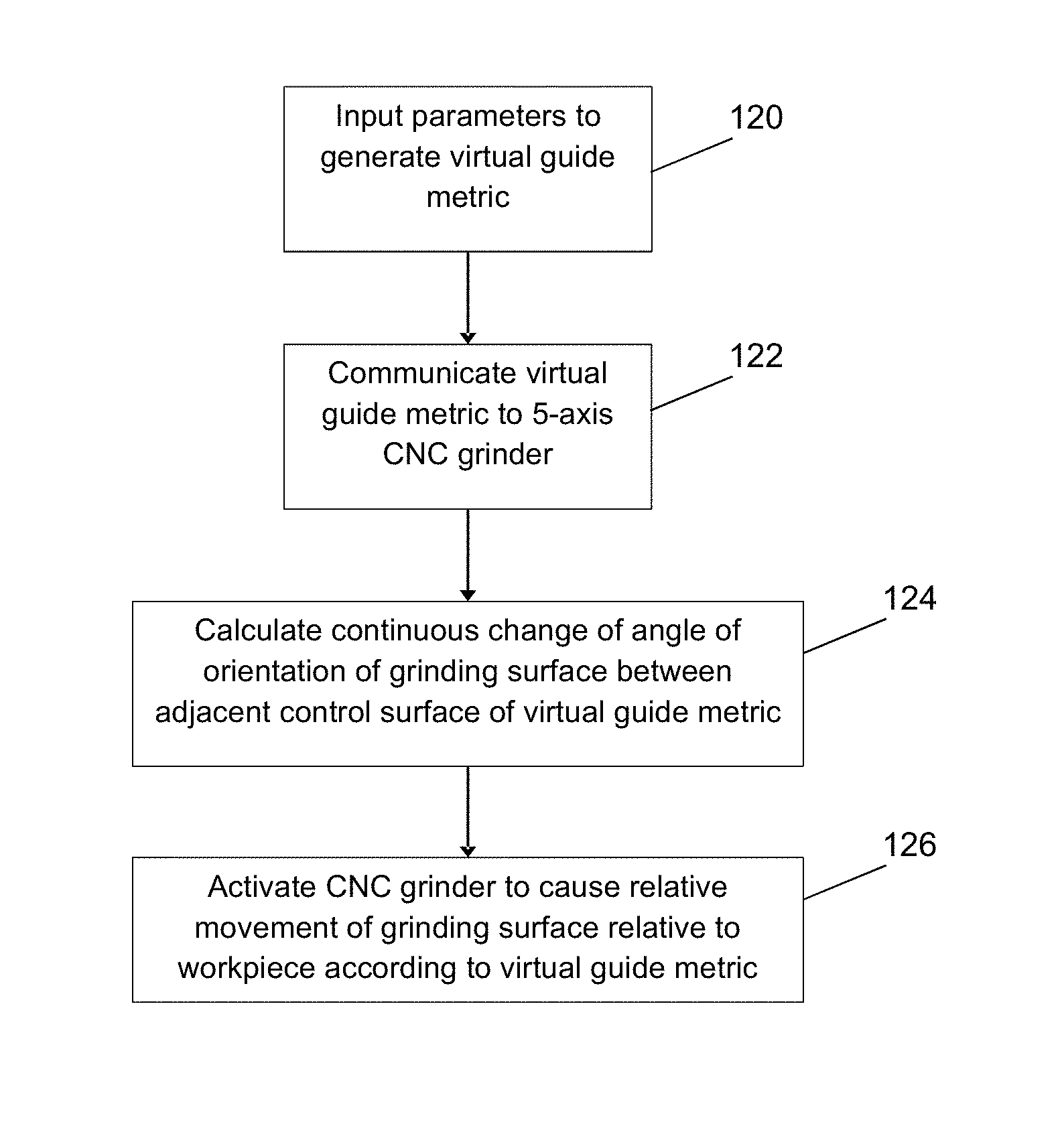

A deep hole drill head support pad whose edge chamfers are formed in a continuous grinding operation so that there are no discontinuities in the angled side surface leading up to the outer surface thereof. A method of manufacturing the support pad includes generating a virtual guide metric including a curved travel path for a grinding surface around a support pad blank, and a plurality of control surfaces intersecting with the curved path at separate locations along its length, each control surface defining an angle of orientation of the grinding surface. A CNC grinding machine can interpret the virtual guide metric to change the angle of orientation of a grinding surface relative to a support pad blank as it moves between adjacent control surfaces in a continuous manner.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B24B Class
- 687 Applications Filed
- 524 Patents Issued To-Date
- 76.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B24B Class
- 37.85 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
