Tool for machining a workpiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
Oct 25, 2016
filing date -
Apr 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

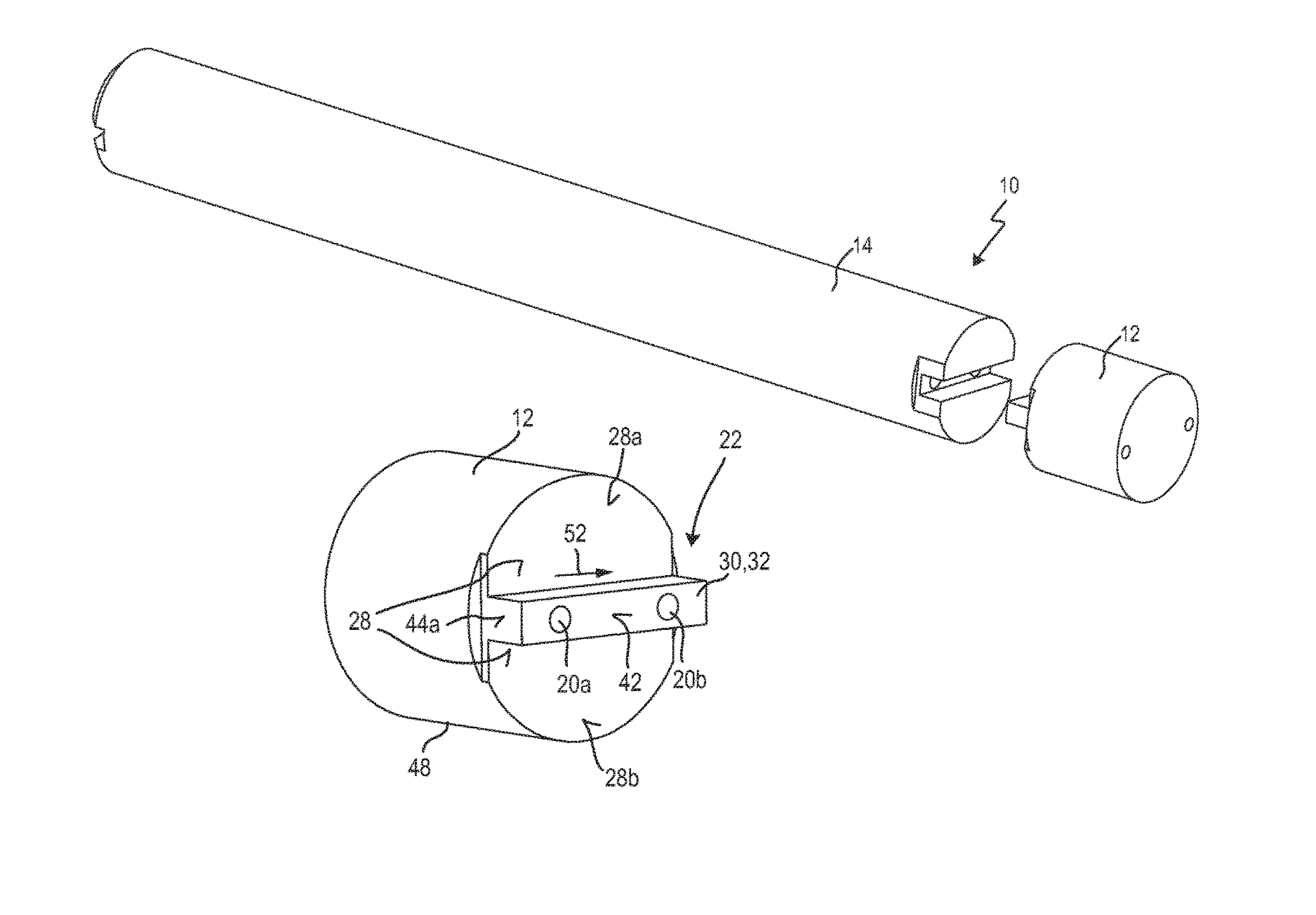

A tool for machining a workpiece. The tool comprises a first tool component which comprises a first internal coolant bore and, on a first face side end, a first connection interface, wherein the first connection interface comprises a first end face for attaching a joining material as well as an elevation which protrudes from the first end face, wherein a first coolant outlet of the first internal coolant bore is arranged on the elevation. In addition, the tool comprises a second tool component which comprises a second internal coolant bore and, on a second face side end, a second connection interface, wherein the second connection interface comprises a second end face for attaching the joining material as well as a recess provided in the second end face, wherein a second coolant outlet of the second internal coolant bore is arranged in the recess. The first tool component and the second tool component are joined together by means of the joining material attached to the first and second end face in such a manner that the first coolant outlet is aligned with the second coolant outlet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B23B Class
- 551 Applications Filed
- 437 Patents Issued To-Date
- 79.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23B Class
- 29.90 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
