Modular anti-fog goggle system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
Nov 22, 2012
filing date -
Nov 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

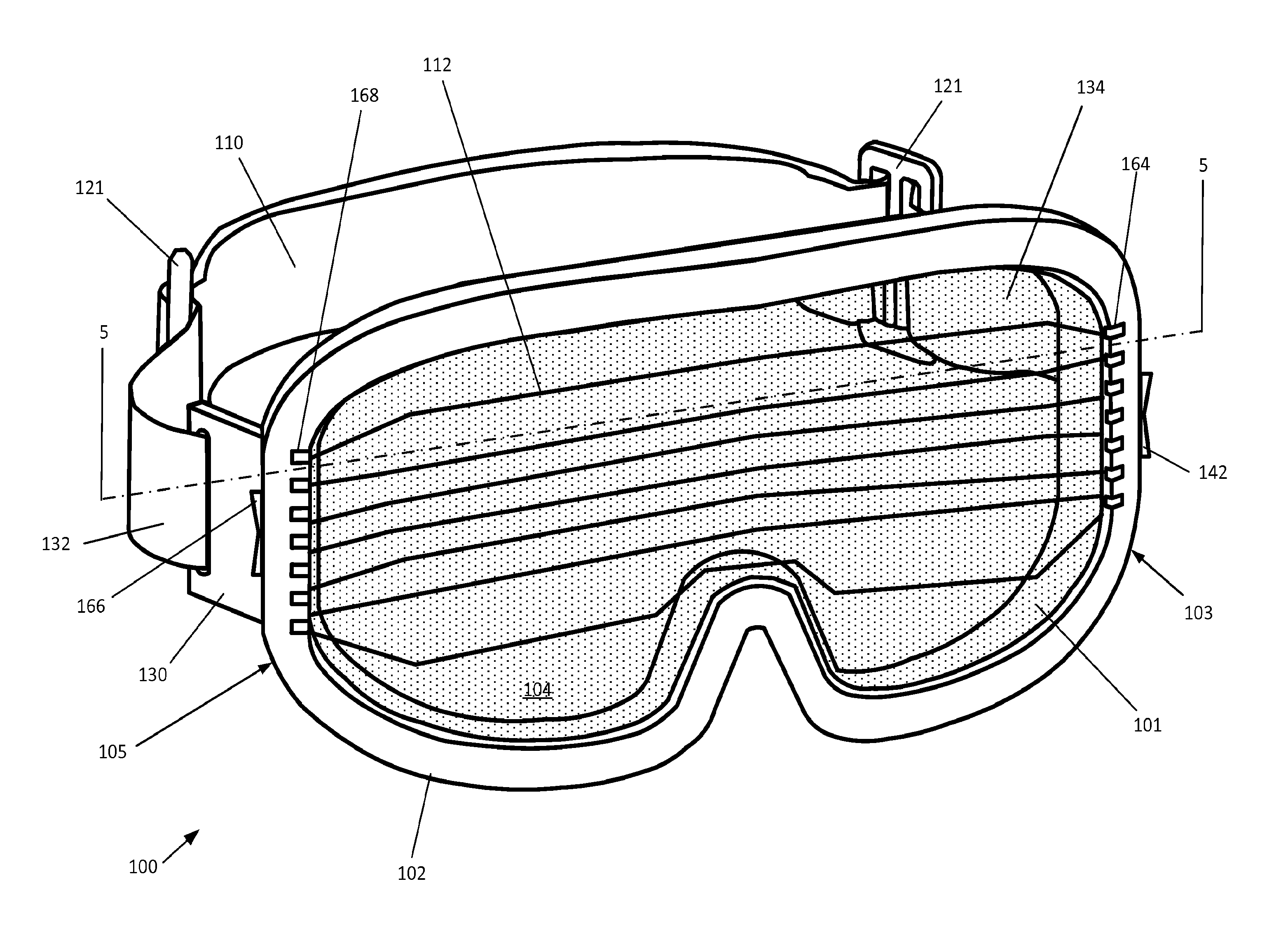

Modular, anti-fog goggle system comprising: lens with an anti-fog heating element and electrical contact, a semi-rigid anterior body comprising an inner peripheral engagement receptacle for receiving the lens within the body, the lens being releasably retained by a removable lens retaining member preferably comprising a tongue releasably interconnected with a groove in the body, the anti-fog element on the lens being releasably connected with a battery preferably retained within the body, the releasable electrical connection being reinforced by the tongue and groove interconnection, a flexible posterior interface being adapted for interposition between the removable lens retaining member and a user's face, and strap means adapted for holding the goggle on the user's head or helmet and reinforcing the interconnection between the removable lens retaining member and the body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- A61F Class
- 4331 Applications Filed
- 3750 Patents Issued To-Date
- 86.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61F Class
- 21.72 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
