Knee joint prosthesis and related method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
May 25, 2017
filing date -
Jul 10, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

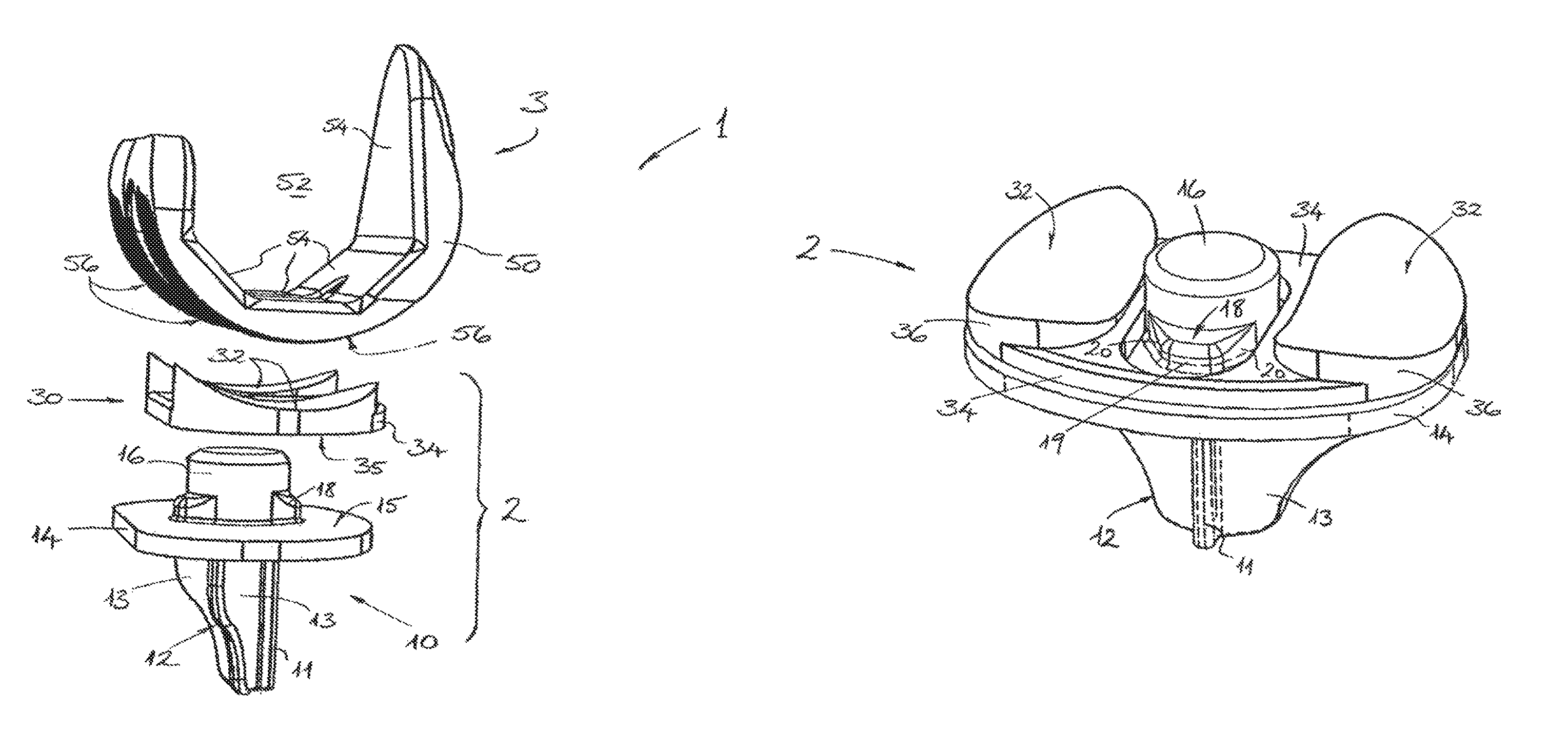

The present invention provides a uni-compartmental knee joint prosthesis (1) which includes a tibial component (2) and a femoral component (3). The tibial component (2) has a fixation portion (10) adapted to be fixed to an upper end of a prepared tibia (T) in a patient, and a bearing portion (30) presenting an articulation surface (32) formed from a ceramic material, wherein the bearing portion (30) is adapted for movement relative to the fixation portion (10). The femoral component (3) is adapted to be fixed to a lower end of a prepared femur (F) in a patient, and comprises a body portion (50) presenting an articulation surface (56) formed from a ceramic material for engagement with the articulation surface (32) of the tibial component (2). The articulation surfaces (32, 56) of the tibial and femoral components are adapted for essentially congruent engagement over a full range of movement of the prosthesis.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B24B Class
- 763 Applications Filed
- 552 Patents Issued To-Date
- 72.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B24B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
