Spring mechanism for power device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2018
Issued Date -
N/A
app pub date -
Mar 18, 2015
filing date -
Mar 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

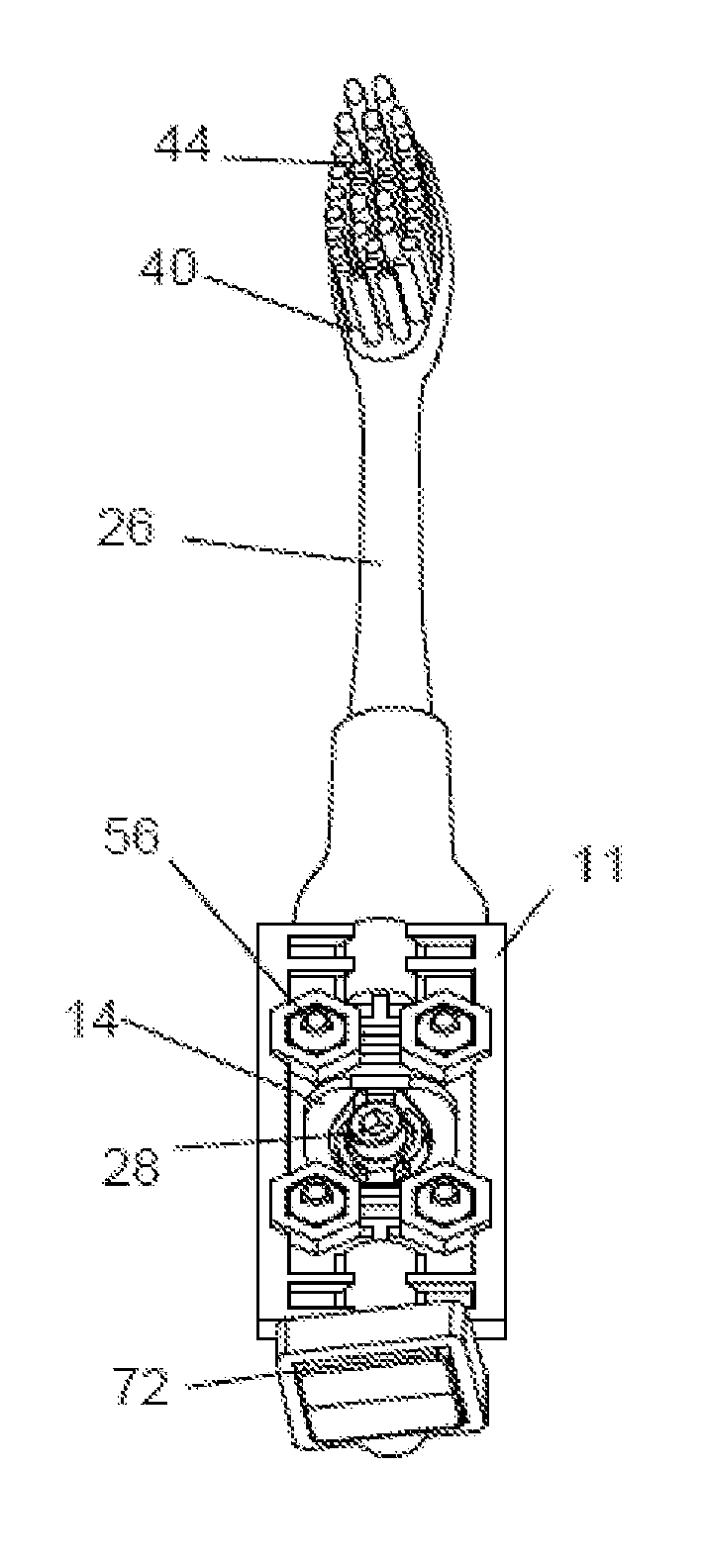

A spring mechanism for an electromagnetic drive unit converts or translates the movement and/or actuation of the electromagnet into a desired movement of the workpiece and enables simple and efficient tuning of the workpiece movement. The spring mechanism includes a housing, a spring connected to the housing, wherein at least a section of the spring is movable with respect to the housing, a drive shaft that includes a first end having a magnet and a second end for attachment to a workpiece, and an adjustable tuning element connecting the drive shaft to the movable portion of the spring. In one embodiment, the spring may be a flat spring, and the movable section may be a positioned between a pair of cutouts defined in the spring. In one embodiment, the adjustable tuning element is connected to the spring such that the adjustable tuning element places the movable portion of the spring under a degree of tension.
