Plasma densification method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Mar 27, 2017
filing date -
Mar 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

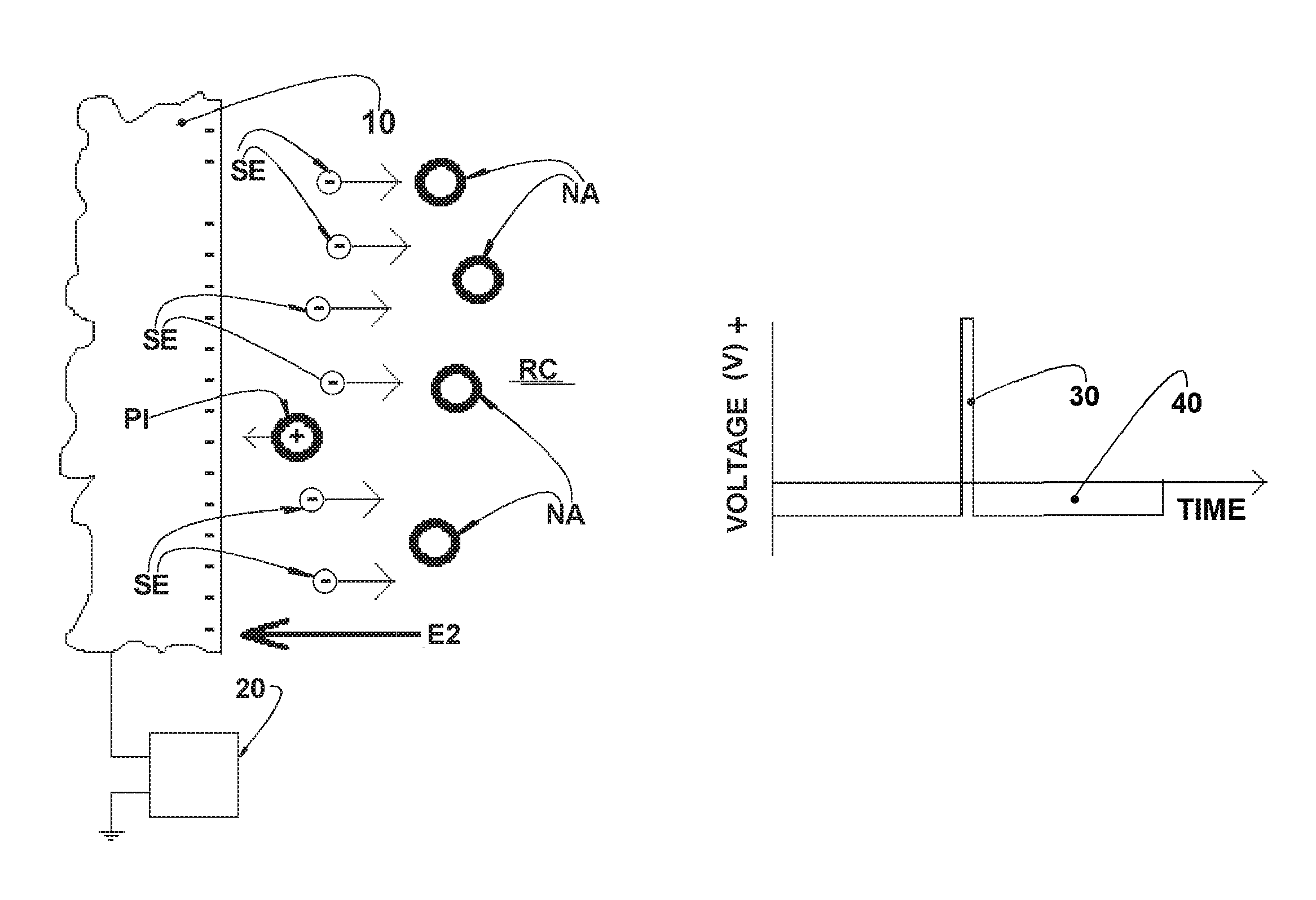

The plasma is formed between electrodes to be energized from an electric power source, containing a partially ionized mass having a luminescence region including neutral atoms (NA), primary electrons (PE), secondary electrons (SE), and ions. The method comprises the steps of: accelerating the primary electrons (PE) toward one of said electrodes polarized by a positive high voltage pulse impacting primary electrons (PE) against said electrode and ejecting secondary electrons (SE) from it; subsequently, accelerating the secondary electrons (SE) toward the luminescence region by polarization of said electrode by a negative voltage to collide the secondary electrons with neutral atoms (NA) and producing positive ions (PI) and derived electrons (DE); repeating the previous steps in order to obtain a steady state plasma with a desired degree of ionization.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01J Class
- 2316 Applications Filed
- 1735 Patents Issued To-Date
- 74.92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
