Method, system and apparatus for providing coexistence between low power stations and non-low power stations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Jan 24, 2017
filing date -
May 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

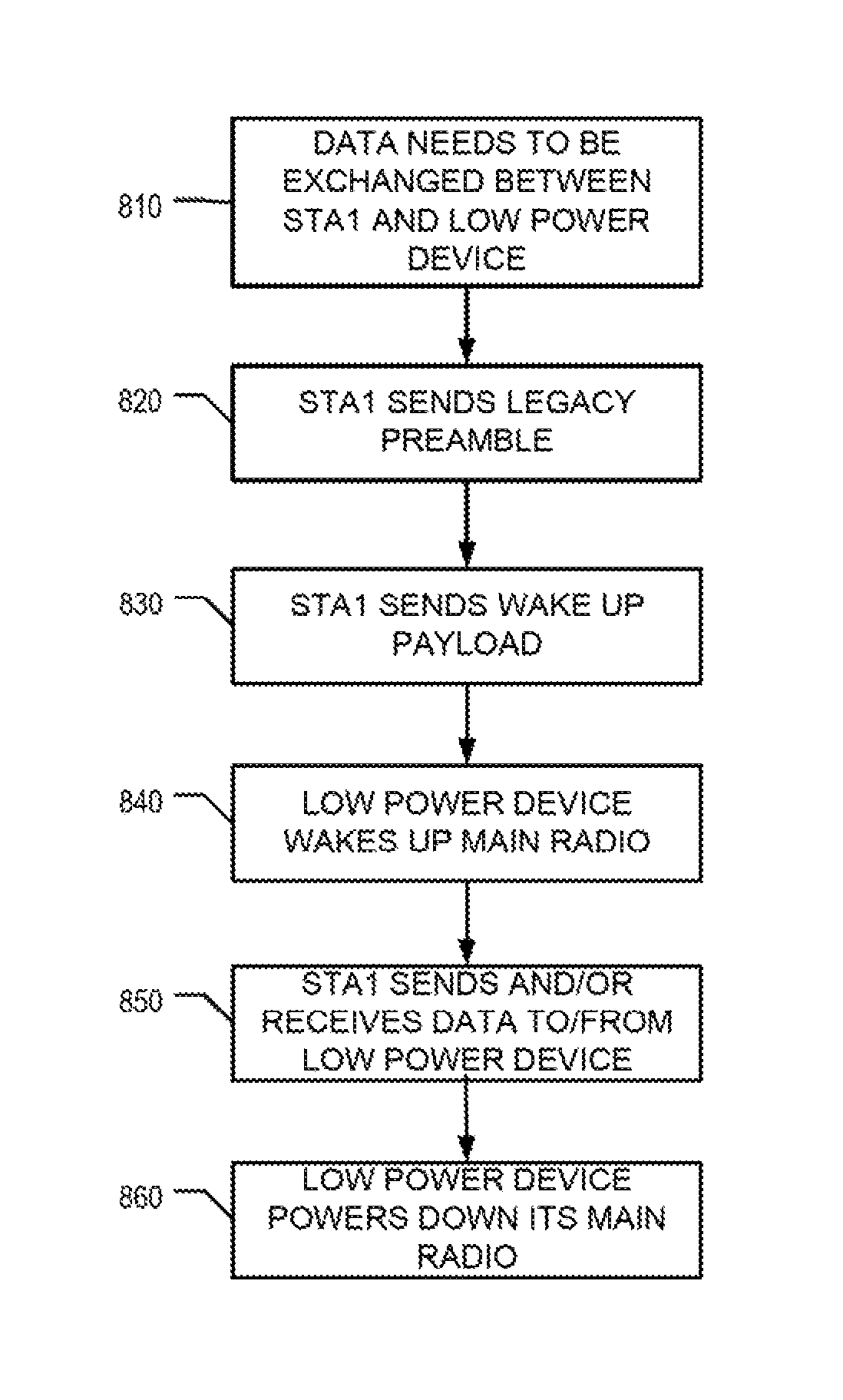

Examples are disclosed for techniques for allowing a wireless device to wake up a low power device while remaining compatible with other devices and wireless protocols. A first station determines that a low power device needs to wake up all or a portion of its circuitry in order to send and/or receive data from the first station. The first station sends a legacy preamble according to a standard wireless communication method such as according to IEEE 802.11 or Bluetooth addressed to the low power device. Legacy stations will recognize that a device is accessing the medium and will abstain from transmitting data during the transaction(s) between the first station and the low power device. The first station then sends a wake up payload according to a low power wireless communication method such as ASK or FSK to the low power device. The low power device recognizes the wake up payload and wakes up its main radio such as an IEEE 802.11 or Bluetooth radio. The first station sends and/or receives data to/from the low power device according to the standard wireless communication method. If there is no more data to send or receive, low power device powers down at least its main radio.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G08C Class
- 777 Applications Filed
- 583 Patents Issued To-Date
- 75.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G08C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
