Power-efficient successive-approximation analog-to-digital converter using LSB averaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Sep 17, 2017
filing date -
Sep 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

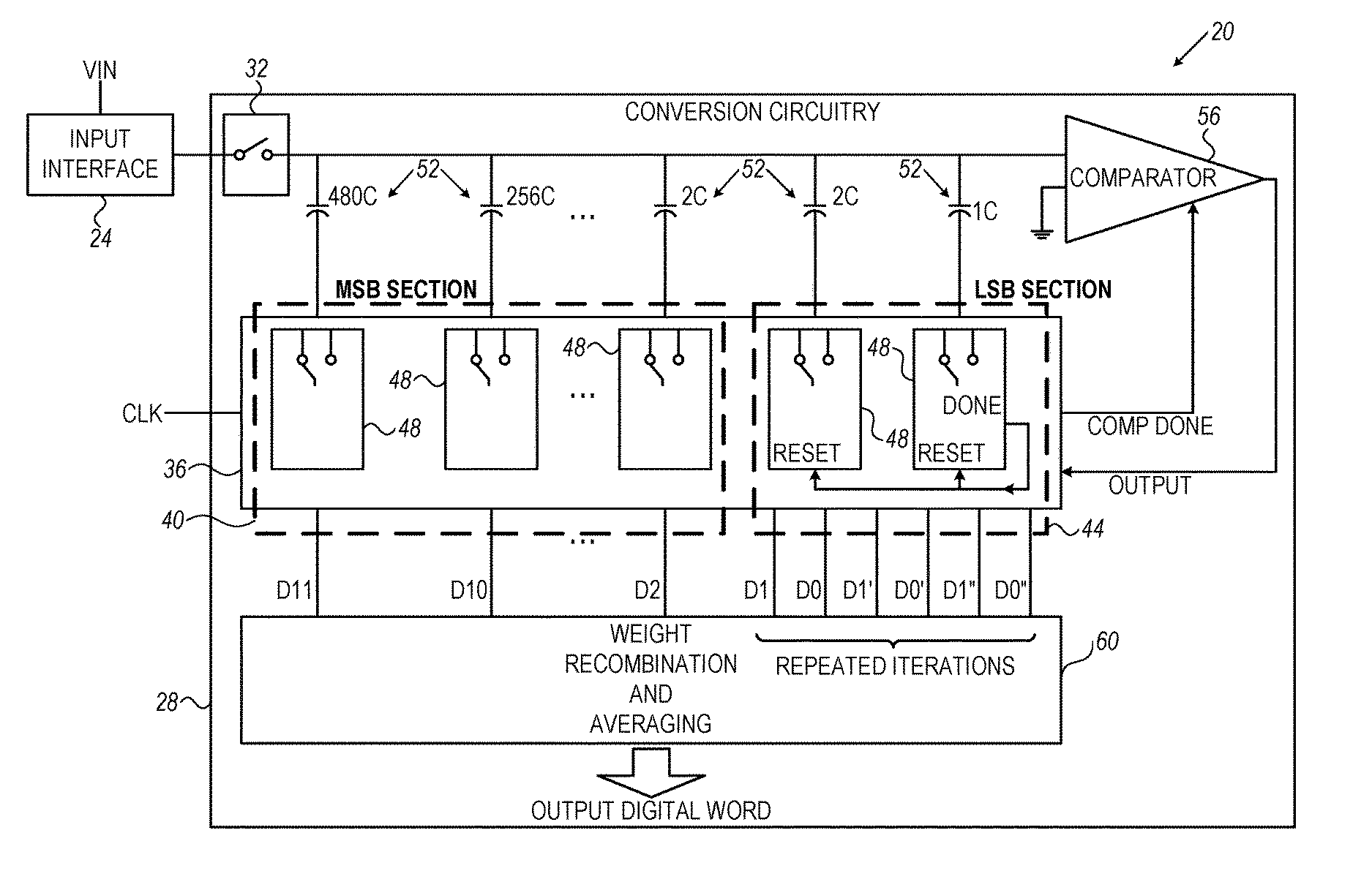

An Analog-to-Digital Converter (ADC) device includes an input interface and conversion circuitry. The input interface is configured to receive an analog input signal. The conversion circuitry is configured to convert the analog input signal into a digital word by performing a sequence of iterations to determine respective bits of the digital word, wherein the sequence (i) progresses in descending order of bit significance of the bits, from a Most Significant Bit (MSB) to a Least Significant Bit (LSB), and (ii) repeats evaluation of a predefined number of Least-Significant Bits (LSBs) of the digital word multiple times, and determining a final value of the digital word by averaging the repeatedly-evaluated LSBs.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H03M Class
- 1979 Applications Filed
- 1704 Patents Issued To-Date
- 86.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03M Class
- 19 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
