Bipolar mobile electrostatic carriers for wafer processing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Jan 8, 2016
filing date -
Dec 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

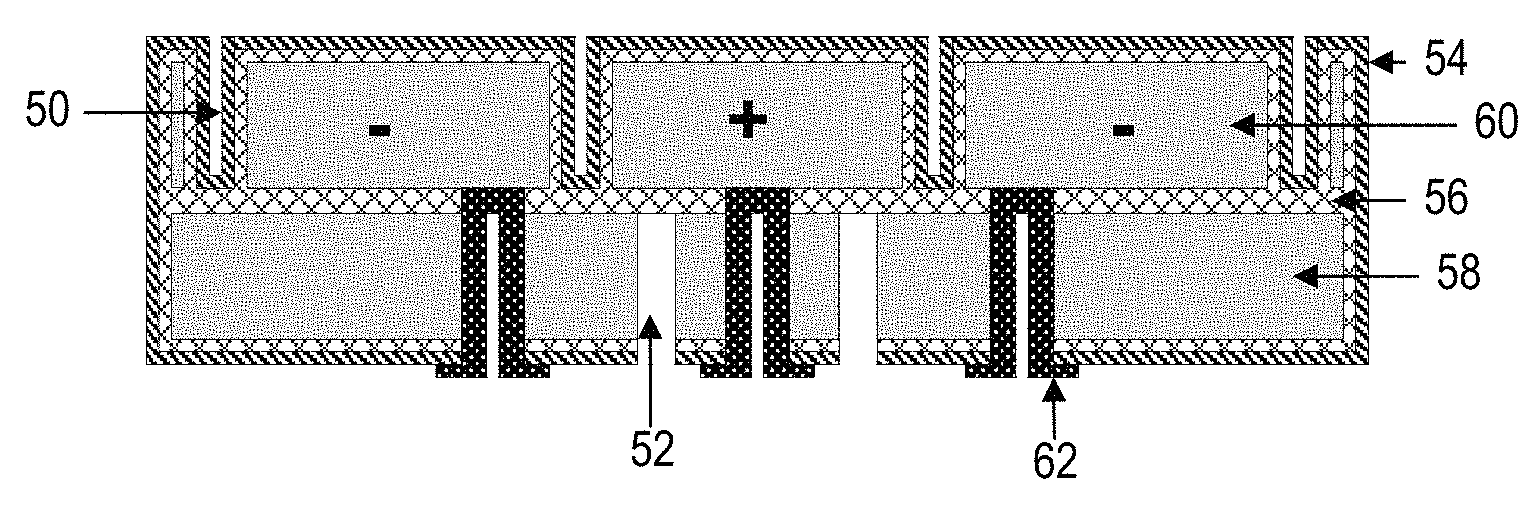

In one embodiment, there is provided a carrier comprising a top semiconductor layer having isolated positive electrode regions and isolated negative electrode regions separated by a frontside trench through the top semiconductor layer extending at least to an underlying insulating layer positioned between the top semiconductor layer and a bottom semiconductor layer. A dielectric layer covers the top exposed surfaces of the carrier. Backside trenches through the bottom semiconductor layer extending at least to the insulating layer form isolated backside regions corresponding to the frontside positive and negative electrode regions. Backside contacts positioned on the bottom semiconductor layer and coupled to the positive and negative electrode regions allow for the electric charging of the frontside electrode regions.
