Apparatus and method for selectively disabling one or more analog circuits of a processor during a low power state of the processor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Mar 25, 2016
filing date -
Dec 19, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

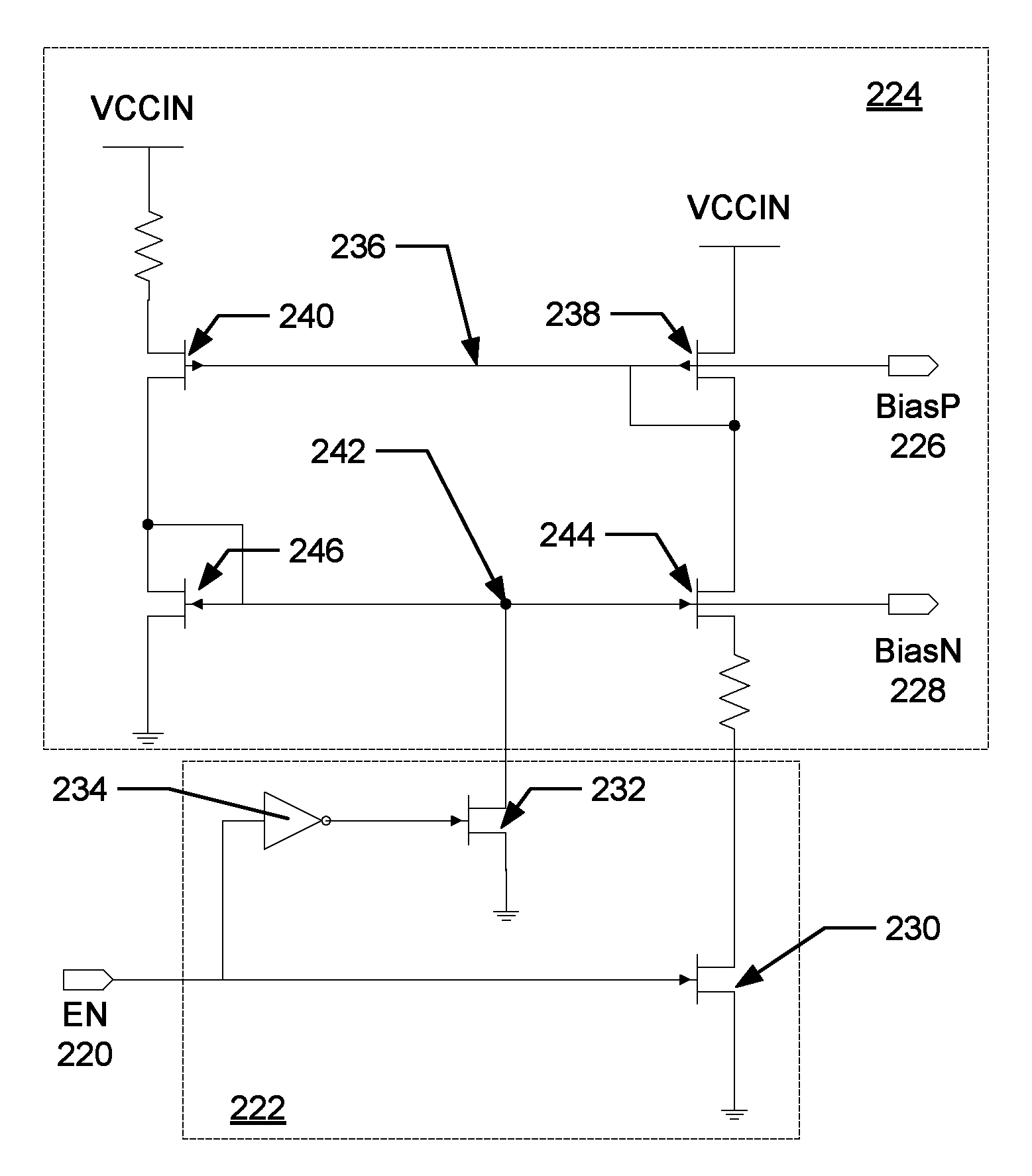

A disable module may be coupled to an analog circuit of an electronic circuit. The disable module may detect an input voltage that is supplied to the analog circuit, and may disable (such as by powering off) the analog circuit if the input voltage is below a reference value. The reference value may be set at a voltage level at or below a maximum voltage that may be present across a transistor in the analog circuit. Accordingly, the analog circuit may be disabled without damage to the transistors of the analog circuit. The disable module may detect whether the input voltage is below the reference value level by comparing the input voltage to a reference voltage. The electronic circuit may include a voltage regulator, and the voltage regulator may include the analog circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
