Articulating hold down mechanism for a furnace
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
May 25, 2016
filing date -
May 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

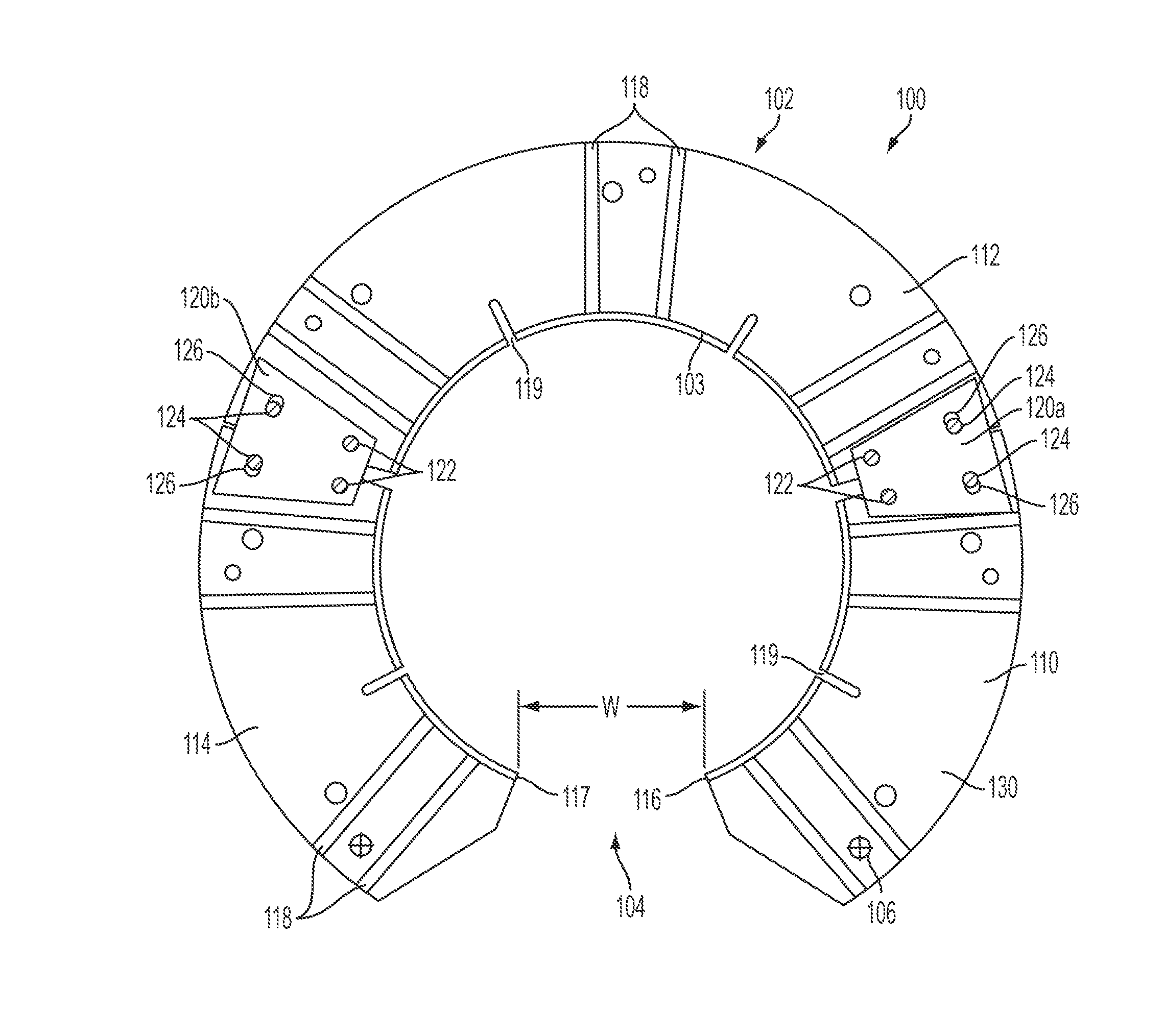

A hold down mechanism for releasably securing a refractory lining to a furnace. The hold down mechanism can comprise plate segments that form a composite plate. The plate segments can comprise a first plate segment structured to articulate relative to a second plate segment. Furthermore, a gap in the hold down mechanism can be structured to adjust in response to a thermal condition of the composite plate, such as thermal expansion or thermal contraction of at least one plate segment. The composite plate can also comprise an articulation plate pivotally coupled to at least one of the first plate segment and the second plate segment via a pivot and/or a slot and pin engagement. The composite plate can further comprise a third plate segment and a second articulation plate pivotally coupled to at least one of the second plate segment and the third plate segment.
