Lighting device with a light conductor for a motor vehicle exterior lighting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Dec 10, 2014
filing date -
Dec 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

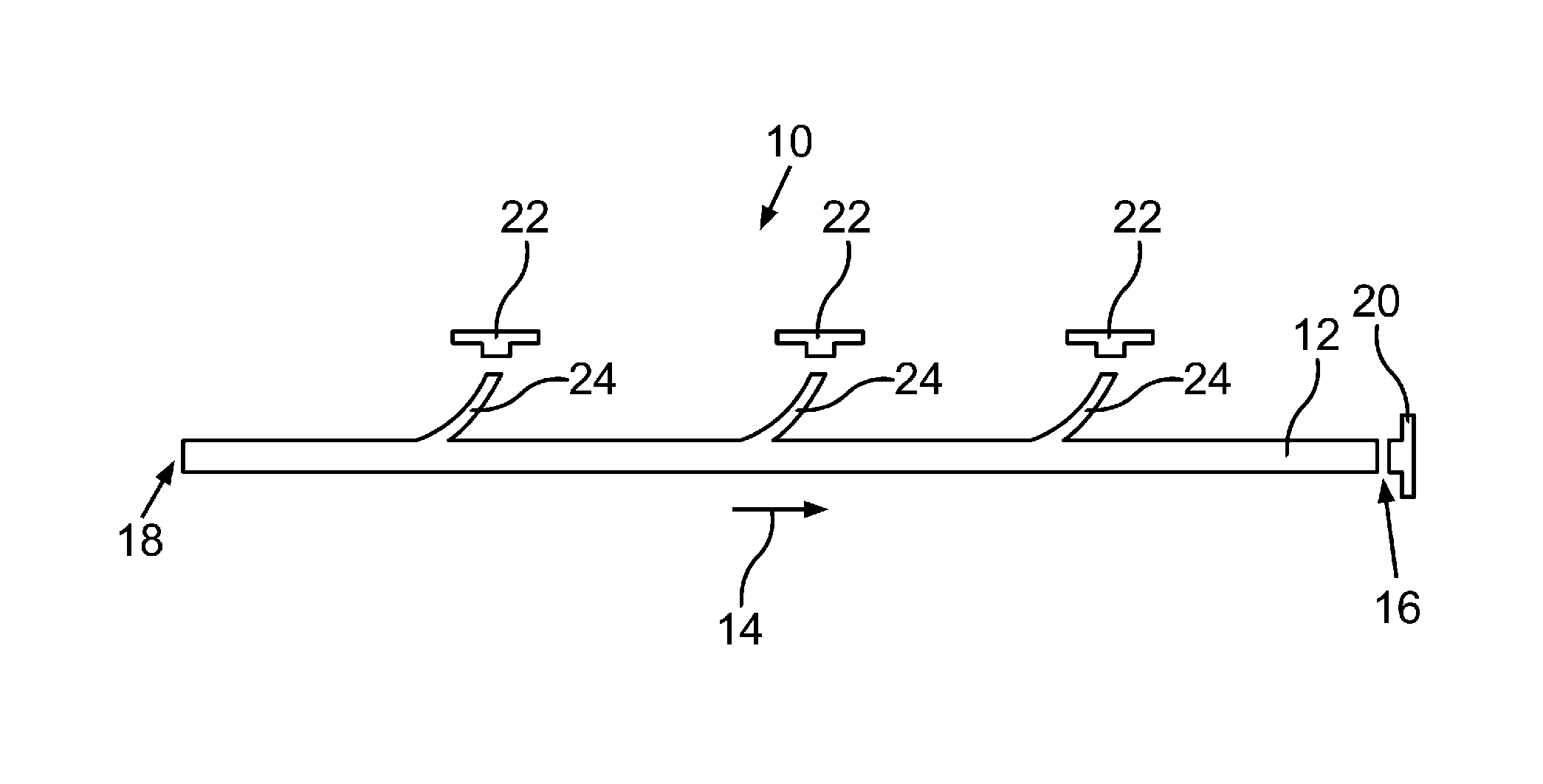

The invention relates to a lighting device (10) according to the invention for a motor vehicle external light having a light conductor (12), which extends along a longitudinal extension direction (14) and has two end faces (16, 18), at least one first light source (20) for coupling light into one of the two end faces (16, 18) of the light conductor (12), a plurality of second light sources (22) for coupling light into the light conductor (12) vertically with respect to the longitudinal extension direction (14) of the light conductor (12), and a control unit for separate actuation of the at least one first light source (20) and of the plurality of second light sources (22).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F21V Class
- 23.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
