Oil cleaner with heated evaporation surface, to remove water and volatiles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Dec 14, 2012
filing date -
Feb 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

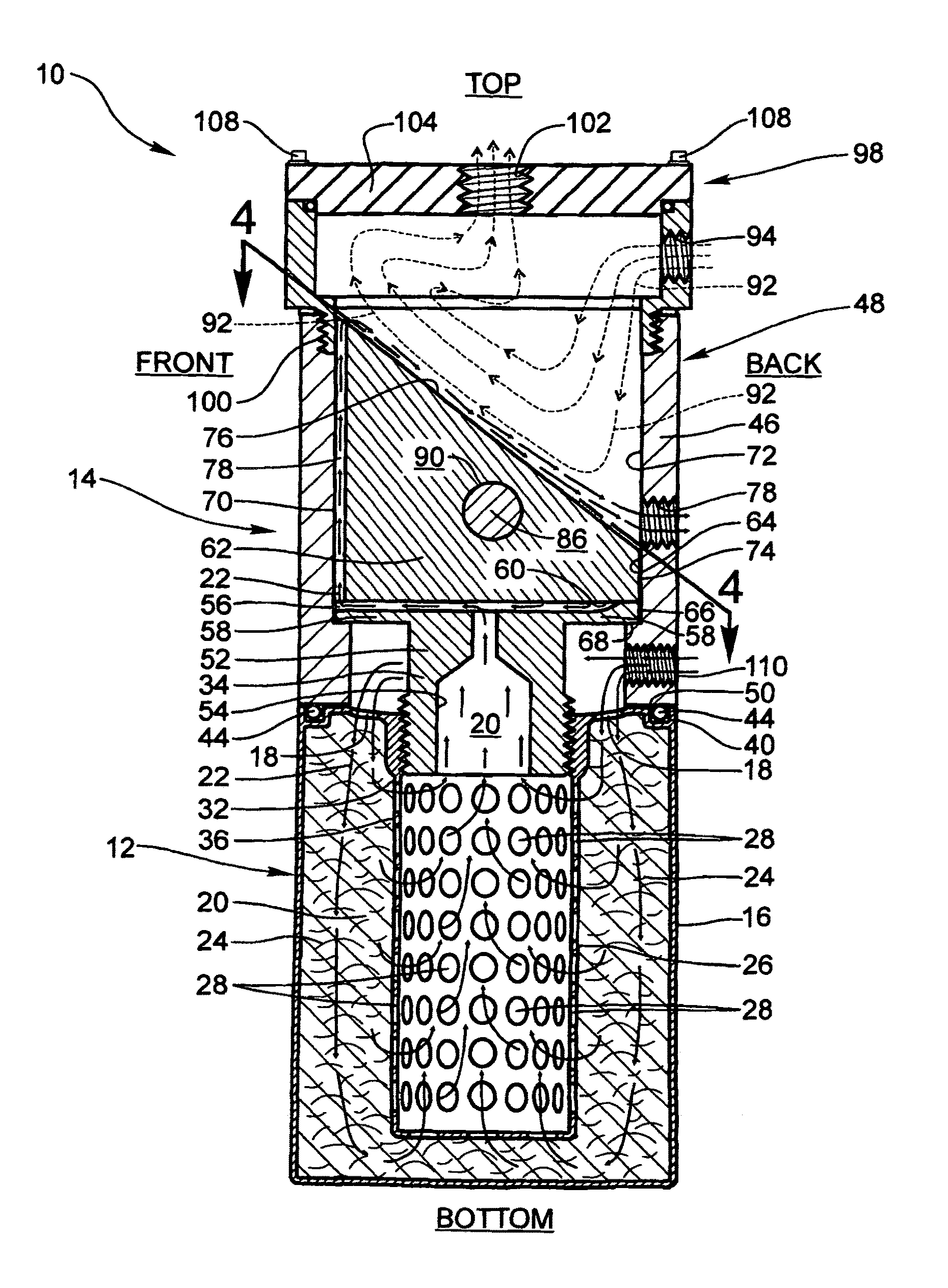

A circulating oil stream cleaner wherein oil to be cleaned is passed through filter medium to remove particulates carried by the circulating oil and through an evaporator unit having a flat, inclined, evaporation surface comprising a top surface of a heat conductive heating block with an electric heater probe therein and positioned closely beneath the heating surface and, with the circulating oil being conductively heated as it passes beneath the heating block, up a frontal end of the heating block and cascades onto and spreads as a film over and then off the heating surface of the heating block through an exit port of the evaporator unit; an evaporation chamber provided above the heating surface allows heated air to circulate over and convectively heat the film of oil and to escape with entrained water and volatiles.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16N Class
- 92 Applications Filed
- 78 Patents Issued To-Date
- 84.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
