Integrated safety device for self-propulsion gas systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
Feb 11, 2016
app pub date -
Sep 15, 2015
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

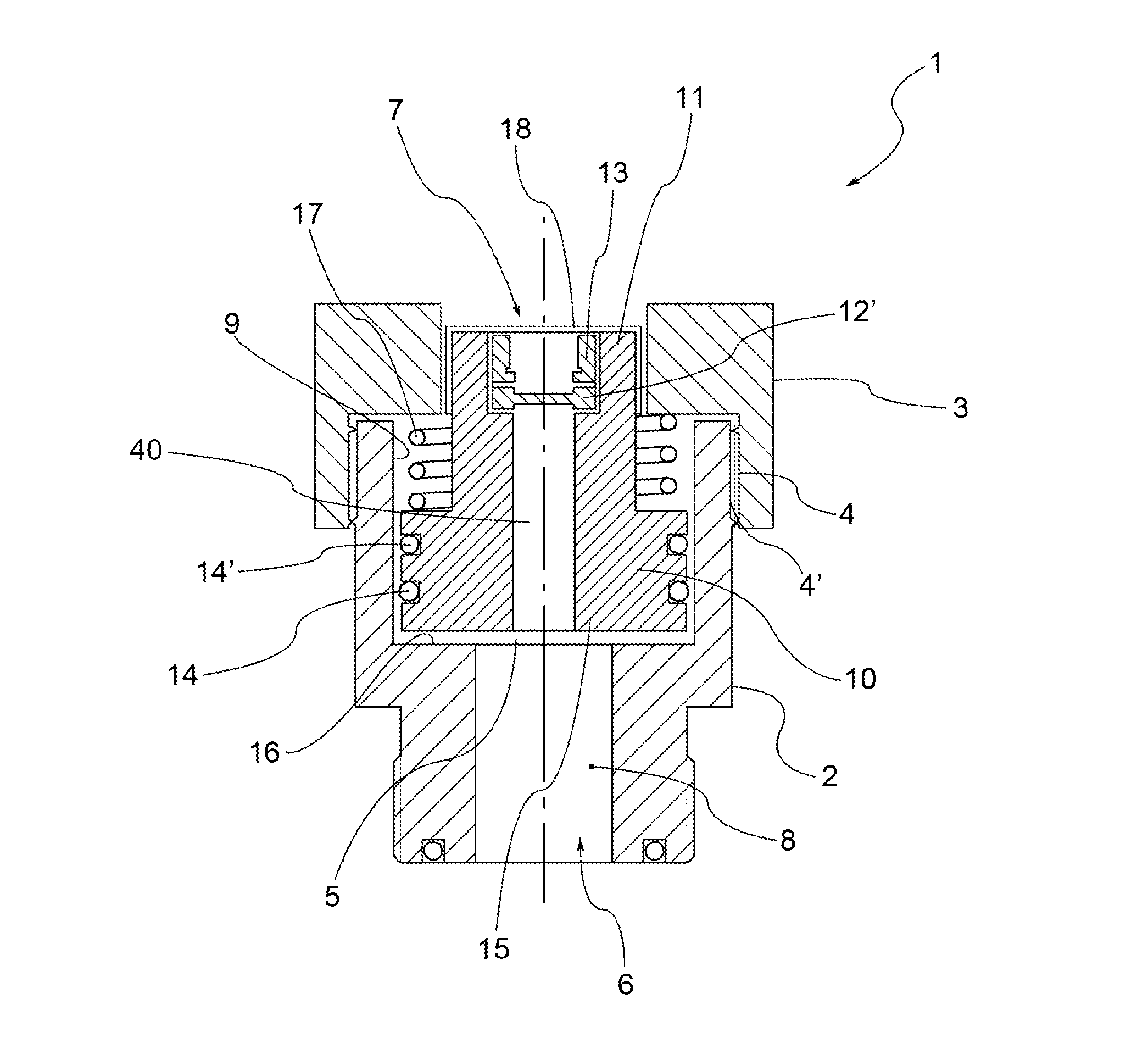

A safety device for a cylinder holding gaseous fluids under pressure is disclosed. The safety device has a device body in which a passage is defined for a fluid; the passage extends from an entry aperture, suitable for being placed in fluidic communication with a cylinder, to an exit aperture. An obturator air tightly engages the passage, the obturator is movable from a first position, in which it indicates the presence of fluid at a pressure below a first predefined pressure threshold value, inside the cylinder, and a second position, in which it indicates the presence of fluid at a pressure above the first predefined pressure threshold value inside the cylinder. At least one temperature and/or pressure-sensitive relief device is positioned in the obturator in such a way that, upon exceeding a predefined temperature threshold or upon exceeding a second predefined pressure threshold, the relief device opens the passage for the fluid and permits the flow of fluid from the entry aperture towards the exit aperture.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16K Class
- 1801 Applications Filed
- 1435 Patents Issued To-Date
- 79.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
