Pump apparatus with switching valve and driving power transmission device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Oct 28, 2014
filing date -
Oct 29, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

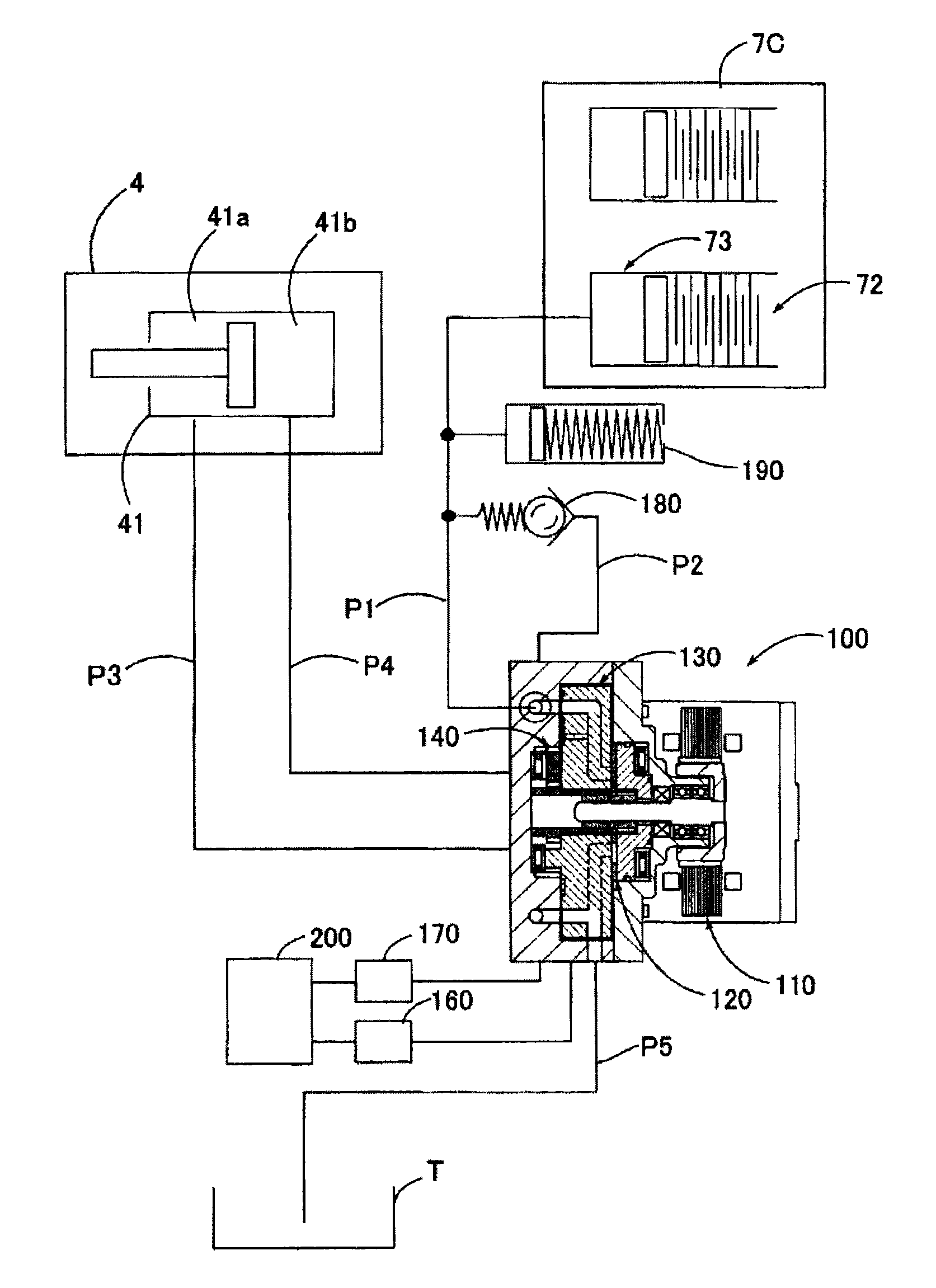

A pump apparatus with a switching valve includes an actuator that is rotationally driven, a pump, a switching valve and a driving power interrupting device. The pump discharges a fluid sucked by rotational driving of the actuator. The switching valve is changed in phase by the rotational driving of the actuator so as to be switchable among a plurality of destinations of the fluid discharged from a pump chamber of the pump. The driving power interrupting device for a valve is switchable between a state where rotational driving power of the actuator is transmitted to the switching valve and a state where the rotational driving power of the actuator is interrupted.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16D Class
- 1365 Applications Filed
- 1201 Patents Issued To-Date
- 87.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16D Class
- 41.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
