Sliding block for a scotch yoke reciprocating piston engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
May 8, 2014
filing date -
Jun 27, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

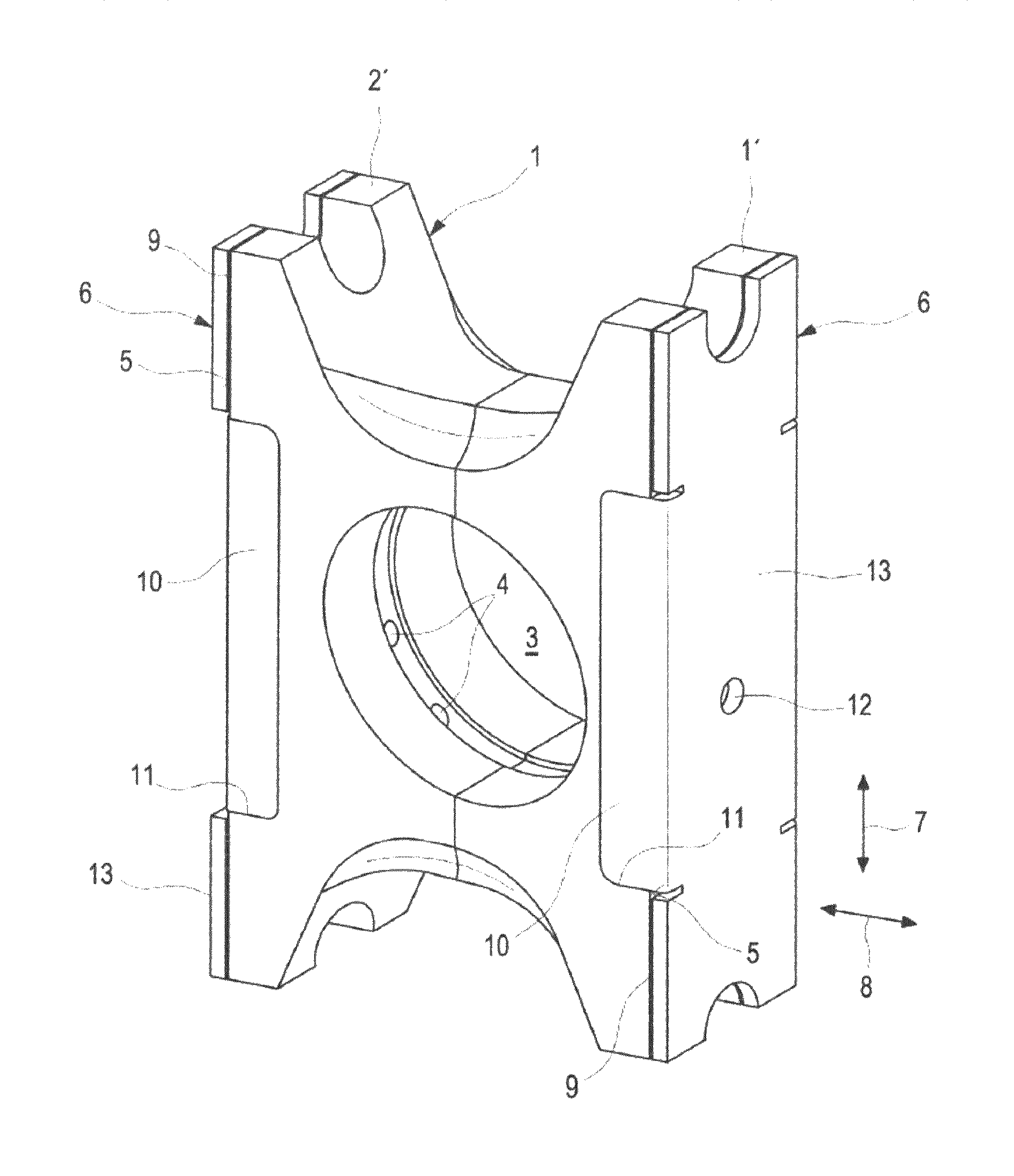

A sliding block for a scotch yoke reciprocating piston engine having a base body with a receiving opening for cooperating with a crankpin of a crankshaft and side surfaces, which are oriented toward slide ways of a scotch yoke during operation, with a supply of pressurized lubricant from the receiving opening for the crankpin to the side surfaces being provided during operation, characterized in that the base body is provided with sliding plates in the region of the side surfaces oriented toward the slide ways of the scotch yoke, characterized in that the sliding plates are supported in floating fashion relative to the base body and between the sliding plates and the side surfaces, there is a gap, which is at least partially filled with lubricant during operation of the scotch yoke reciprocating piston engine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F02B Class
- 1127 Applications Filed
- 980 Patents Issued To-Date
- 86.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
