Cutting elements comprising sensors, earth-boring tools comprising such cutting elements, and methods of forming wellbores with such tools
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Mar 19, 2014
filing date -
May 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

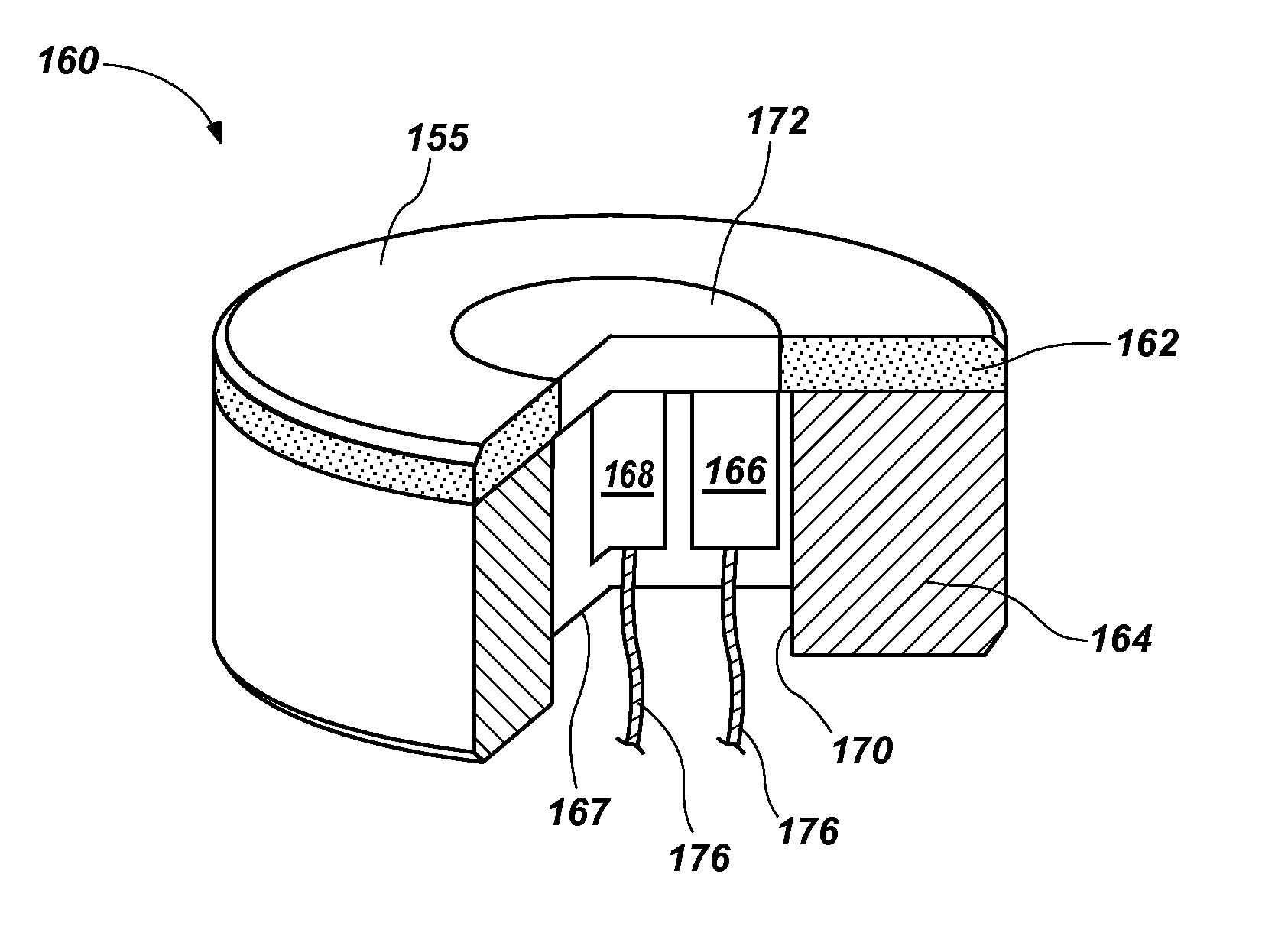

An earth-boring tool includes a cutting element comprising a hard material and at least one of a signal generator configured to provide an electromagnetic or acoustic signal to an interface between a surface of the hard material and a surface of a subterranean formation, and a sensor configured to receive an electromagnetic or acoustic signal from the interface. A method of forming a wellbore includes rotating the earth-boring tool within a wellbore and cutting formation material with a cutting element, transmitting a signal through the cutting element to an interface between the cutting element and the formation material, and measuring a response received at a sensor. A cutting element includes a transmitter oriented and configured to dispense a signal to an interface between the cutting surface and a surface of a formation and a sensor oriented and configured to measure a signal from the interface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01H Class
- 190 Applications Filed
- 148 Patents Issued To-Date
- 77.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01H Class
- 29.55 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
