Dampened hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
Sep 6, 2017
filing date -
Sep 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

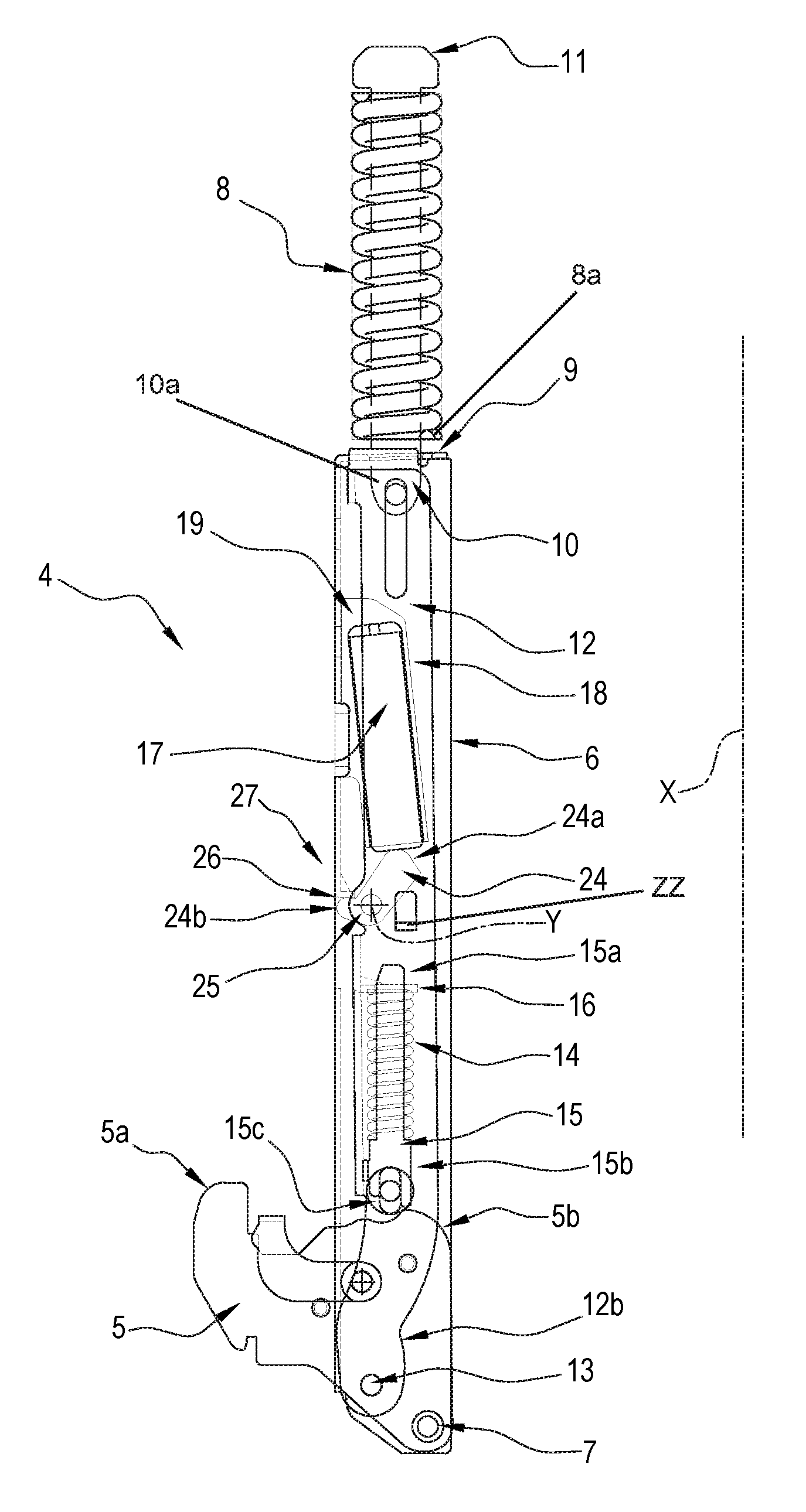

A hinge for doors of appliances, including a box-shaped element and a first lever pivoted on the box-shaped element by a first pin; one of the box-shaped element or the first lever being fixable to a frame and the other fixable to a door, to make the door tiltably movable relative to the frame between a closed position and an open position; a first elastic device supported by the box-shaped element for applying an elastic action on the first lever, a rod for connecting the first lever to the first elastic device, the connecting rod being positioned in a slidable fashion inside the box-shaped element; a damping member for applying a damping action during the reciprocal motion of the first lever and the box-shaped element, in the proximity of reaching the closed position; a cartridge containing the hydraulic damping member, the cartridge being fixed to the box-shaped element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- E05D Class
- 627 Applications Filed
- 464 Patents Issued To-Date
- 74.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- E05D Class
- 31.20 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
