Head-of-wall firestopping construction for use with an acoustic wall construction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
N/A
app pub date -
May 15, 2015
filing date -
May 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

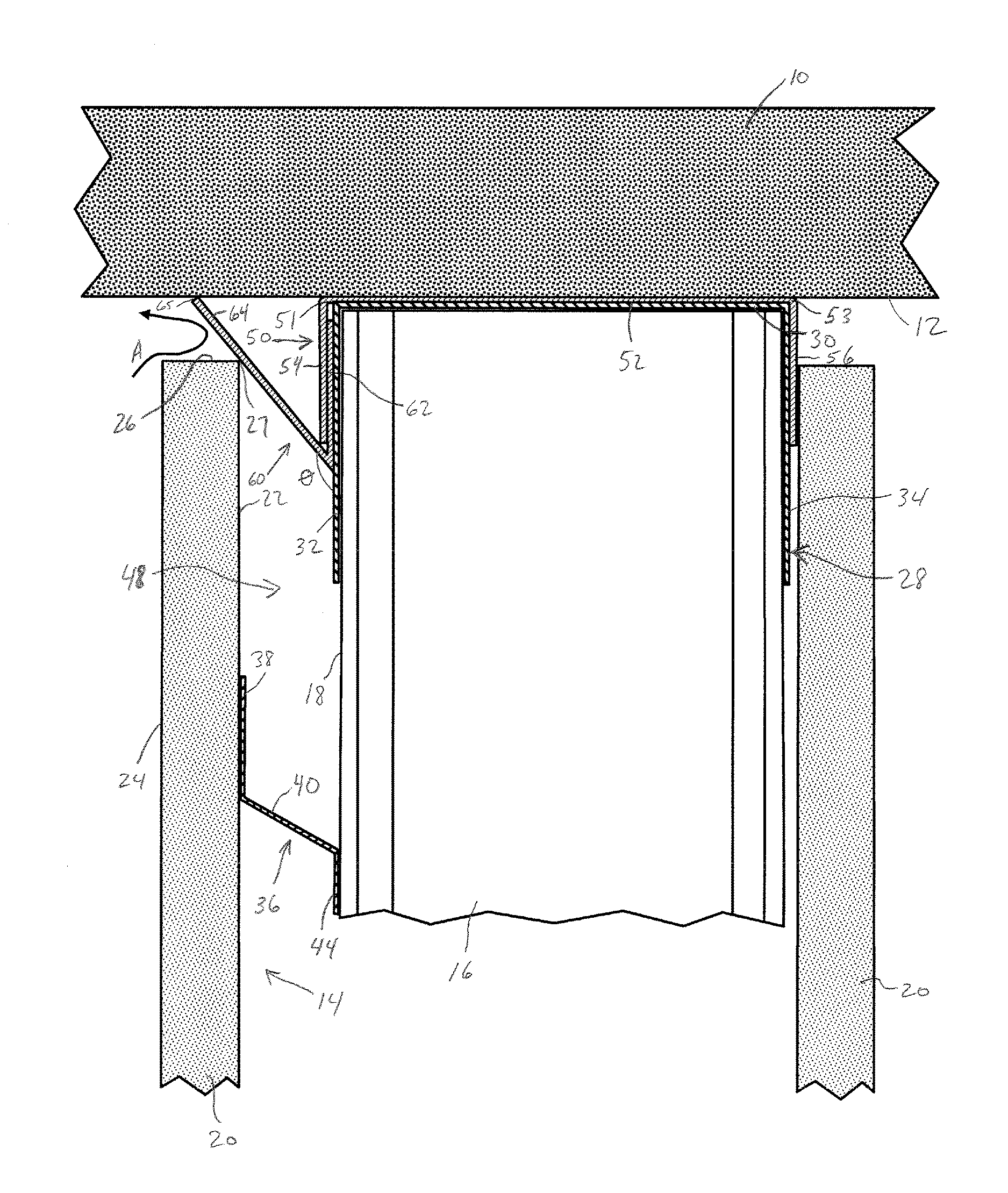

A sealing gasket assembly for sealing a head-of-wall of an acoustic wall construction. The acoustic wall construction includes a ceiling track, having a given width, secured relative to a floor underside and supporting a plurality of studs with each of the studs including a stud face. At least one wall panel is secured spaced from and not in contact with the stud faces such that a spacing zone is defined between the stud faces and an inner surface of the at least one wall panel. The gasket assembly includes an insulating gasket configured for a main section thereof to be positioned between the ceiling track and floor underside, the main section defining first and second lateral sides which are spaced from one another a distance at least equal to the given width. A secondary gasket is associated with the insulating gasket and includes a sealing member extending outwardly relative to the first lateral side and configured to engage an upper portion of the at least one wall panel and a portion of the floor underside and form a seal between the at least one wall and the floor underside.
