Closure for a container
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2018
Issued Date -
May 25, 2017
app pub date -
Oct 30, 2013
filing date -
Oct 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

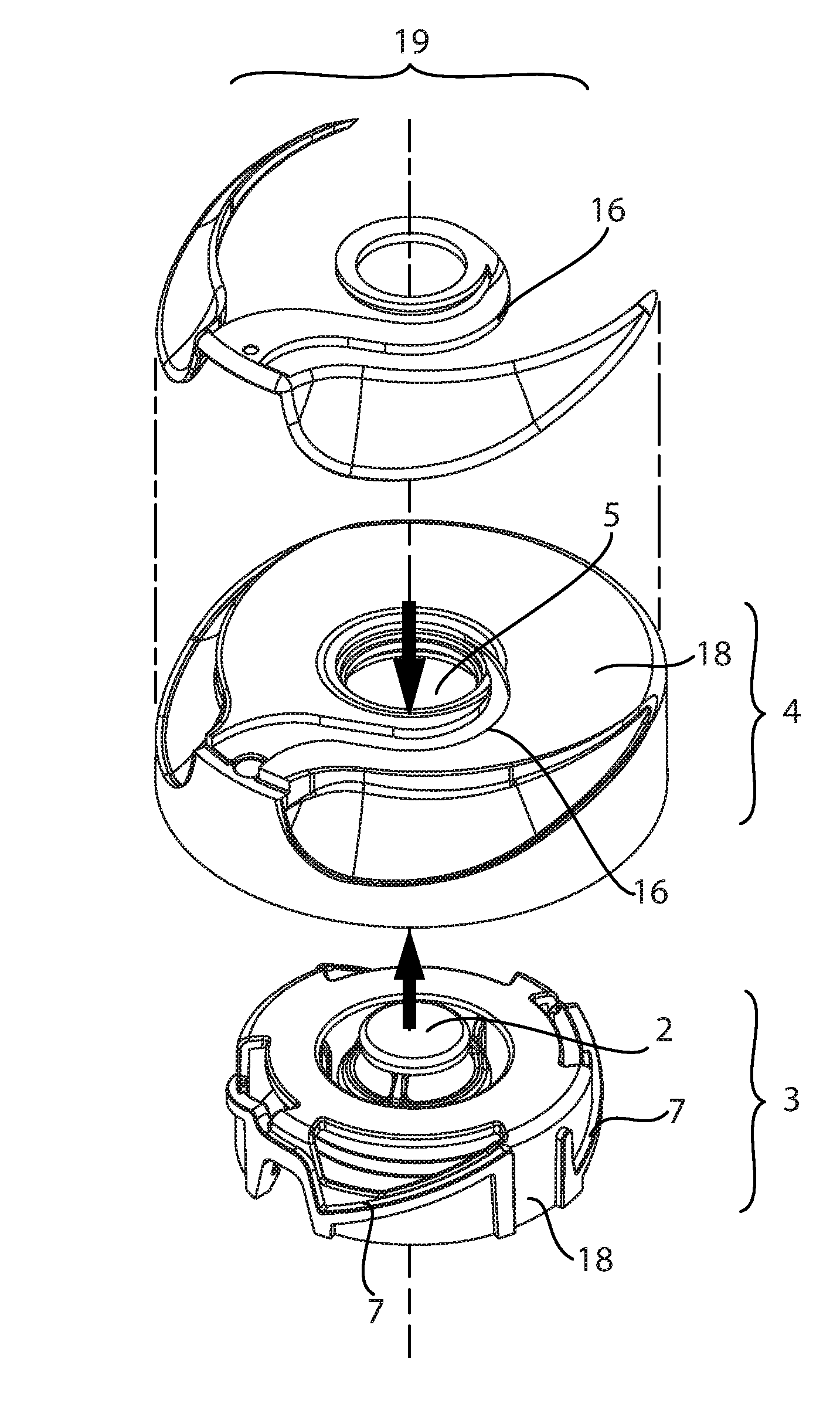

The present invention is directed to a closure for an outlet opening of a container comprising a first component which snaps onto an outlet opening and provides a seal for an outlet opening said first component snaps with a second component of said closure; wherein the first component comprises one or more rails to enable stability of the assembly and defines the direction of movement of the second component relative to the first component; a second component comprising a dispensing orifice of said second component, said second component, snaps with said first component; wherein the second component comprises ribs which engage the rail(s) of said first component; a dispensing orifice positioned directly adjacent to the open portion of the container body; wherein one or more directions of the movement of the second component relative to the first component are independently controlled by rails and ribs.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 12, 2029 |
